Stainless HY Series Fittings
Premium One-Piece Hydraulic Hose Fittings for Industrial Applications
HY Series hose fittings, originally designed by Parker, are precision-crafted crimp fittings compatible with 1 wire braided, 2 wire braided, and thermoplastic hose configurations. Our cost-effective, permanent compression-style crimp hydraulic fittings enable easy assembly and significantly reduce installation time for professional teams across diverse applications.
TITAN Fluid supplies premium crimp fittings fully compatible with Parker HY series, featuring high-grade stainless steel 316 construction for superior corrosion resistance. Available in comprehensive sizes from 1/4" to 1", these versatile fittings are ideal for industrial hydraulics, construction equipment, marine applications, and critical fluid transfer systems, delivering reliable performance and leak-free connections in the most challenging operating conditions.
Why Choose HY Series Fittings?
316 Stainless Steel Construction
Manufactured from 316 stainless steel for superior corrosion resistance and longevity in demanding environments
High-Pressure Performance
Designed for high-pressure hydraulic systems with exceptional pressure ratings and safety margins
Permanent Crimp Connection
Crimp-style connection ensures permanent, leak-free sealing with maximum reliability
Universal Compatibility
Compatible with Parker HY series hose fittings, Weatherhead U series fittings.
Wide Hose Compatibility
SAE 100 R1, SAE 100 R2, SAE 100 R6, SAE 100 R7, SAE 100 R8, SAE 100 R16, SAE 100 R17
End Connection Types
JIC female swivel, JIC male, NPT male, NPT male swivel, NPT female swivel, ORB male
HY Series Product Range
Comprehensive selection of stainless steel HY Series hydraulic hose fittings for professional applications

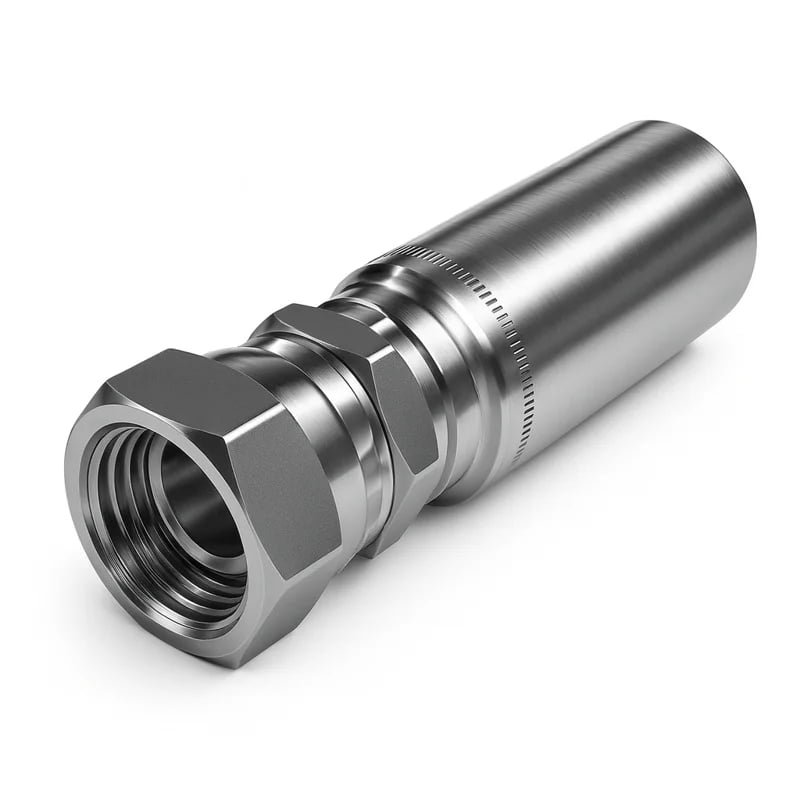

Stainless HY Series Hose Fitting – BSP Female
- Interchange: Parker 1GUHY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female BSP 60° Cone

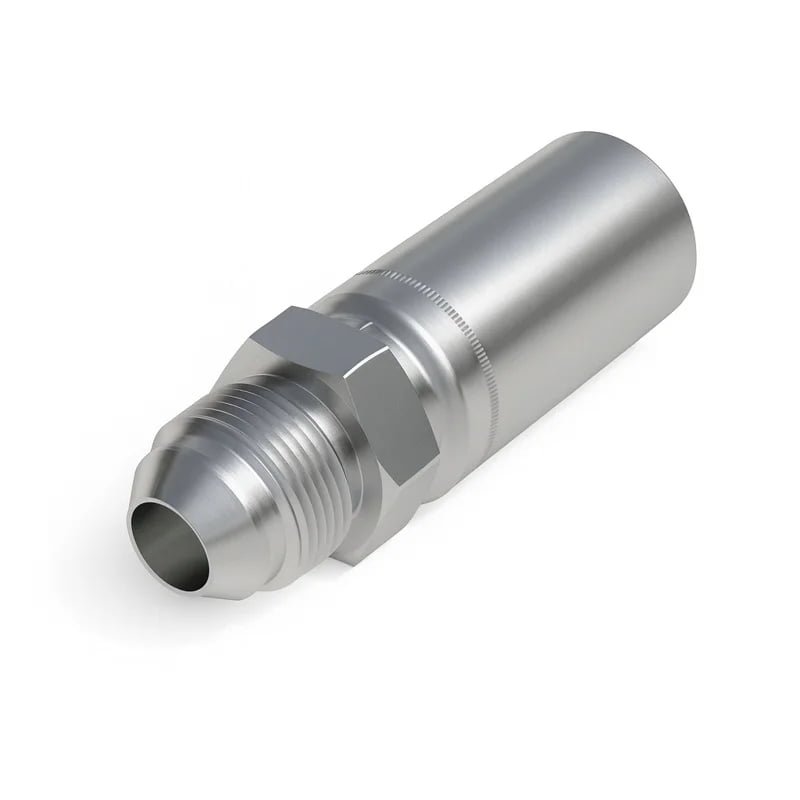

Stainless HY Series Hose Fitting –37° JIC Male
- Interchange: Parker 103HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male JIC 37°

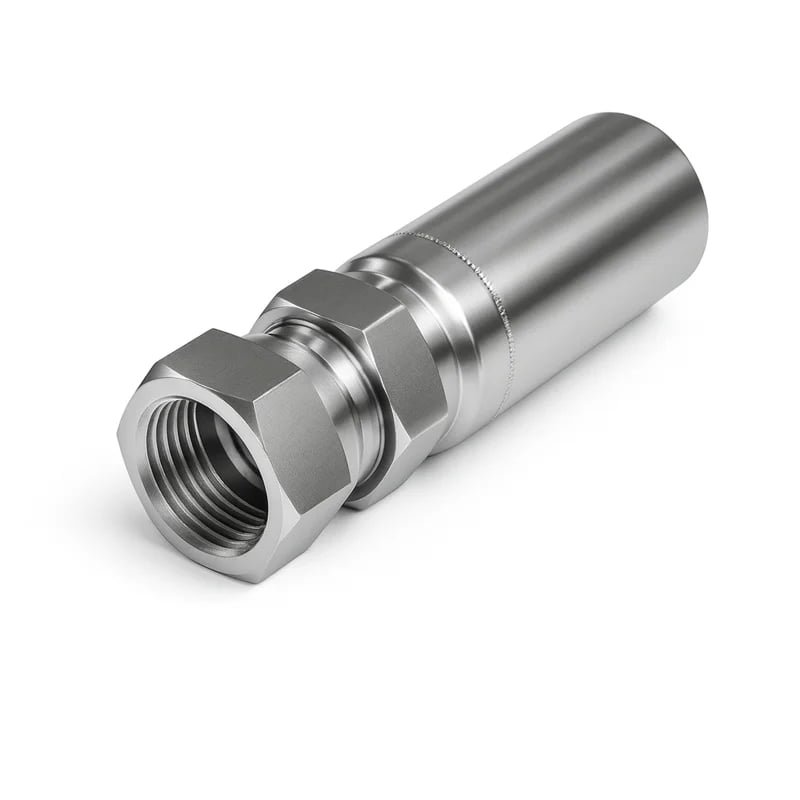

Stainless HY Series Hose Fitting – JIC Female
- Interchange: Parker 106HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°

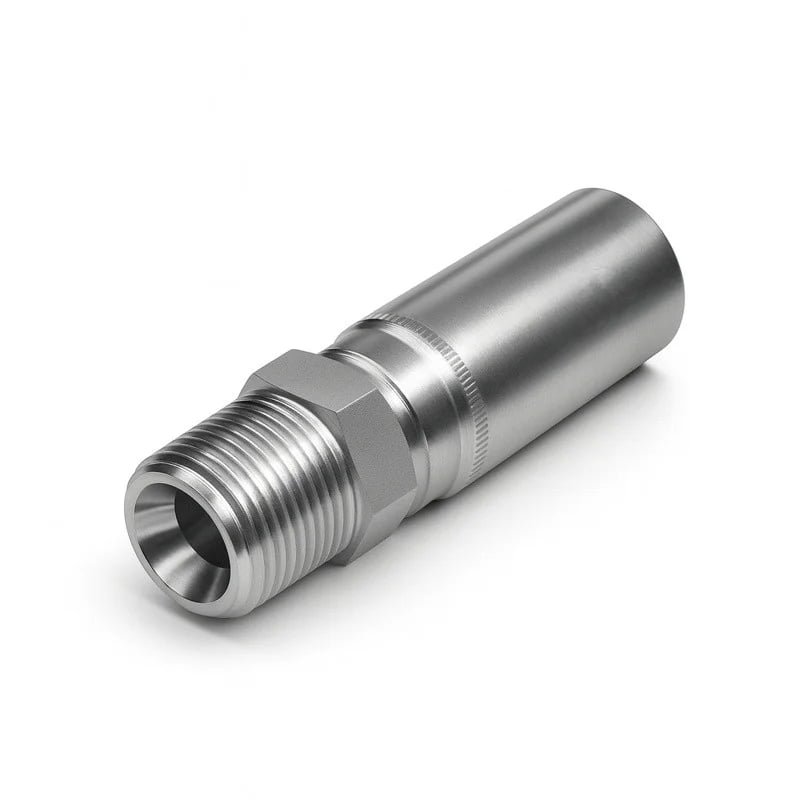

Stainless HY Series Hose Fitting – NPT Male
- Interchange: Parker 101HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male NPT

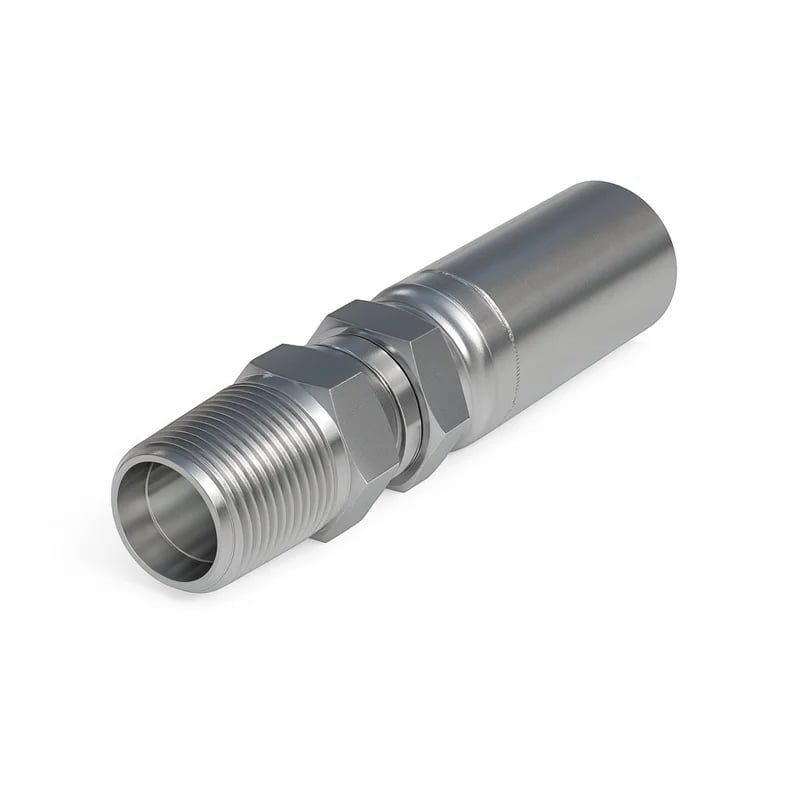

SS HY Series Hose Fitting – NPT Male Swivel
- Interchange: Parker 113HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male NPT Swivel

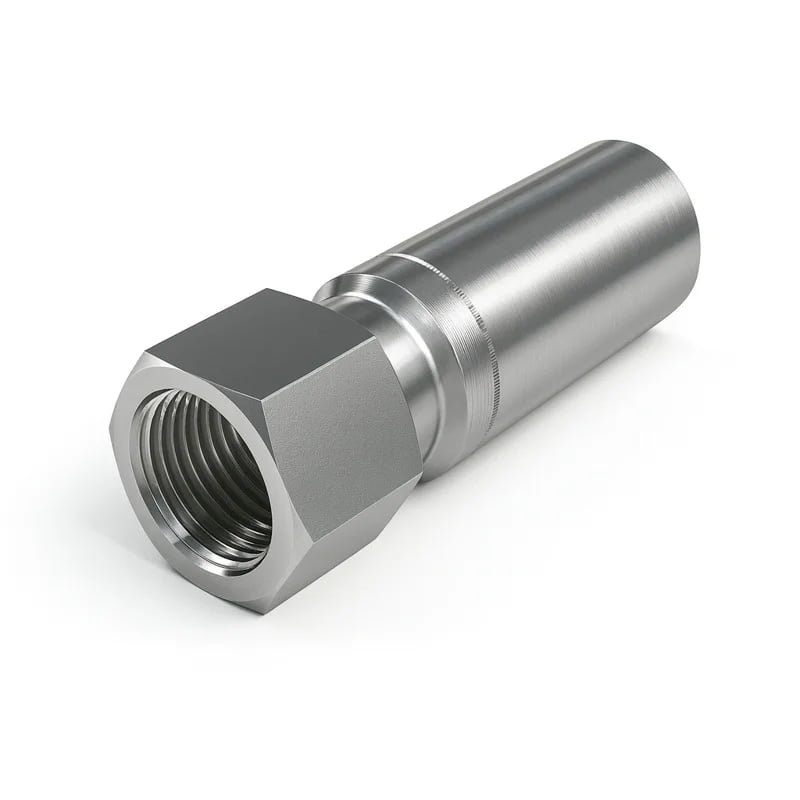

Stainless HY Series Hose Fitting – NPT Female
- Interchange: Parker 102HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female NPT

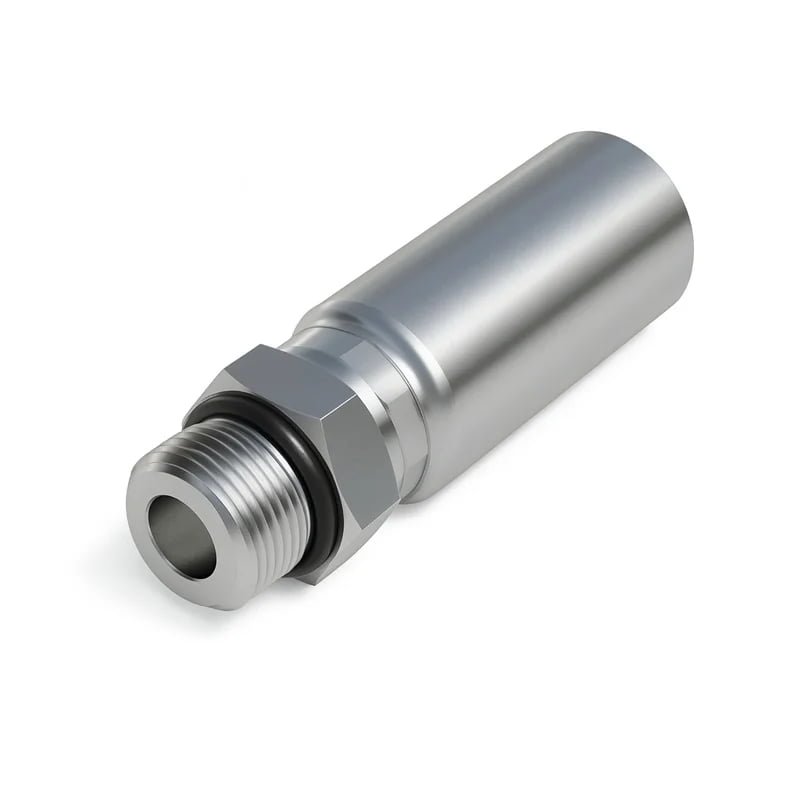

Stainless HY Series Hose Fitting – ORB Male
- Interchange: Parker 105HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: O-Ring Boss Male

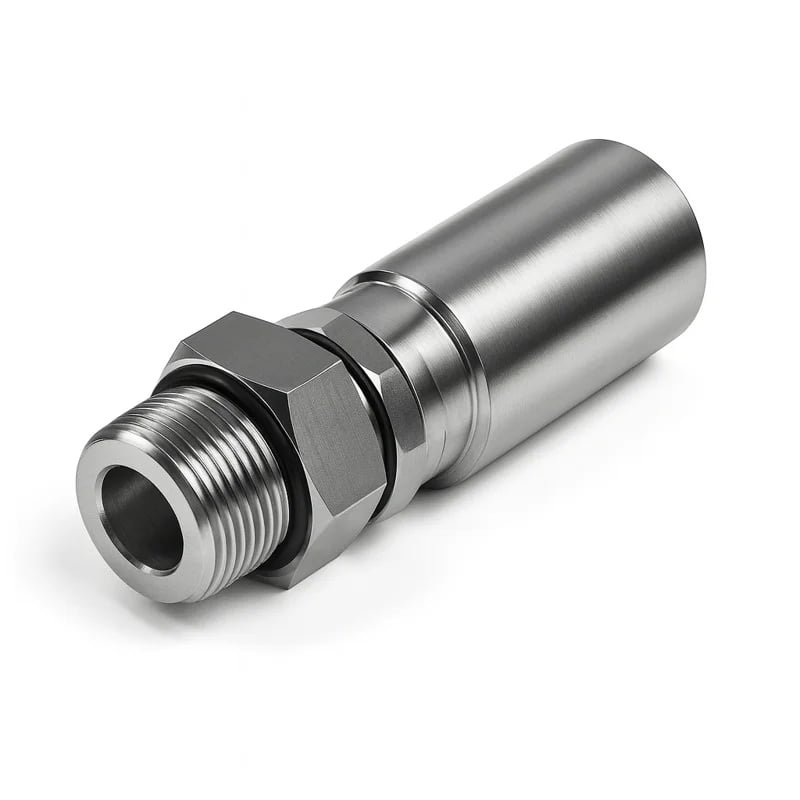

SS HY Series Hose Fitting – ORB Male Swivel
- Interchange: Parker 10GHY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male ORB Swivel

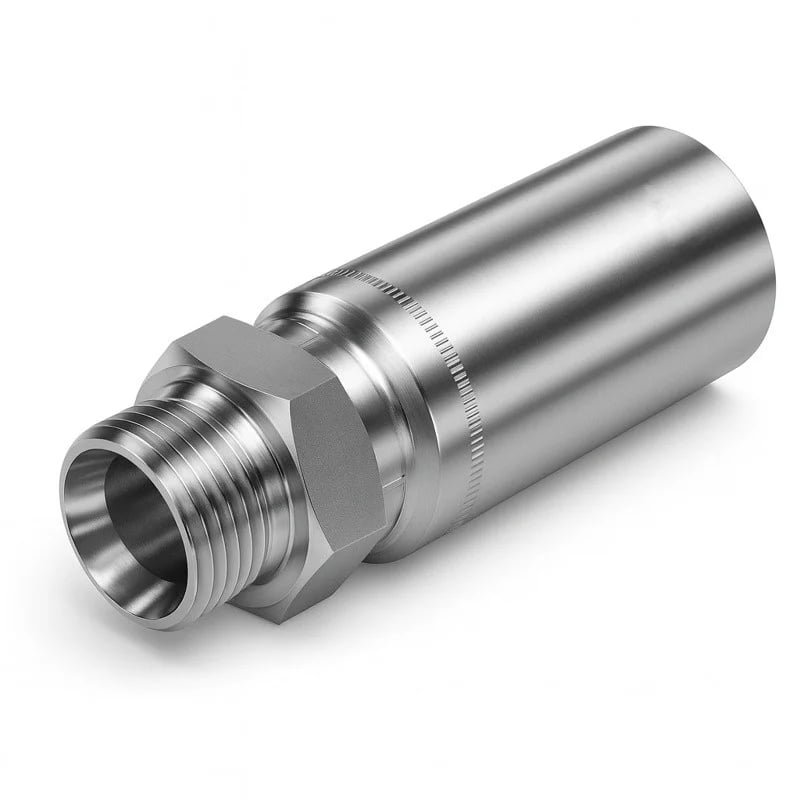

Stainless HY Series Hose Fitting – BSPP Male
- Interchange: Parker 1D9HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male BSPP 60° Cone

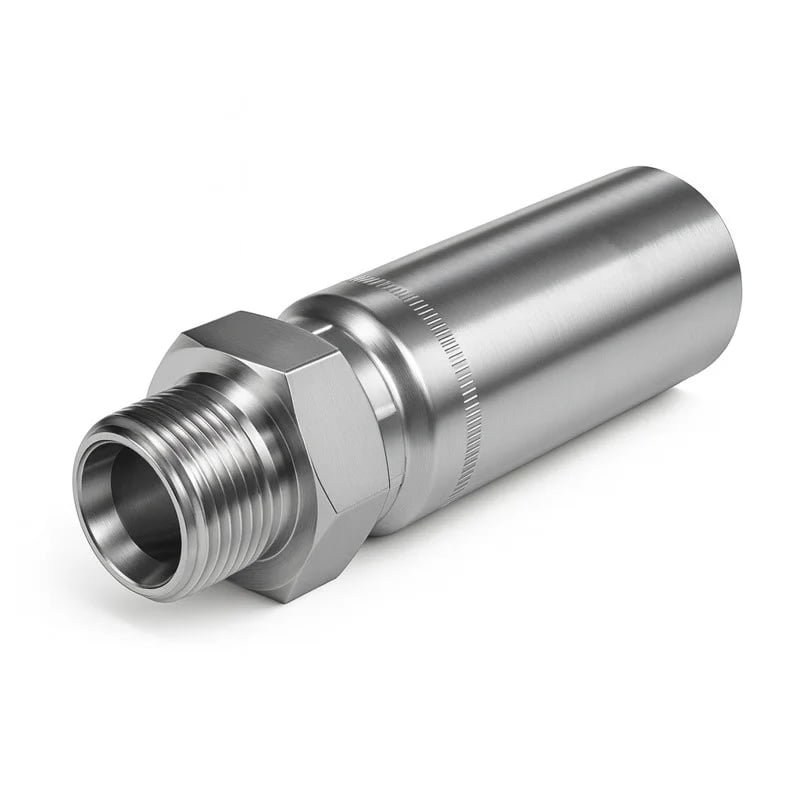

Stainless HY Series Hose Fitting – BSPT Male
- Interchange: Parker 1UTHY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male BSPT

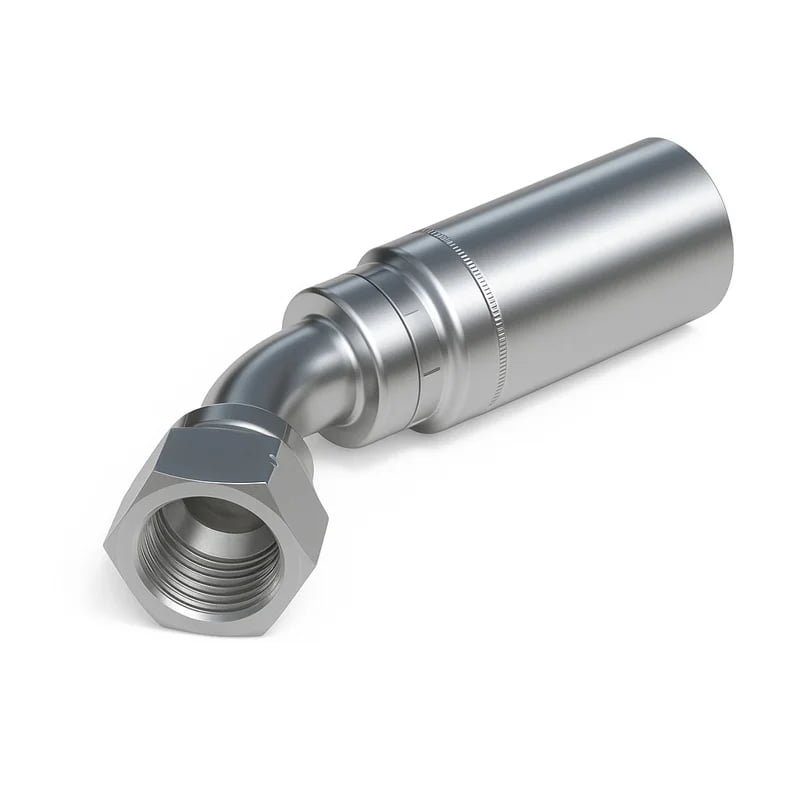

Stainless HY Series Hose Fitting – JIC Female 45°
- Interchange: Parker 137HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°

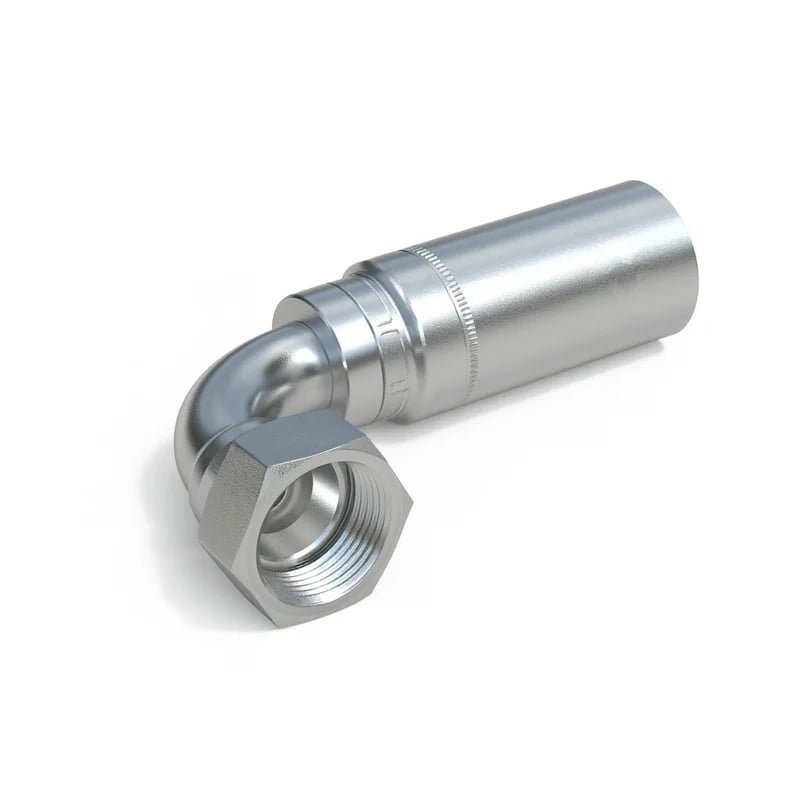

Stainless HY Series Hose Fitting – JIC Female 90°
- Interchange: Parker 139HY
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°
Features & Benefits
Advanced engineering and innovative technology deliver superior performance in every HY Series fitting
Easy Push On Force
Minimal insertion force required for quick and effortless hose assembly, reducing operator fatigue and installation time.
Imperial HEX
Standard imperial hexagonal dimensions ensure compatibility with common tools and simplify assembly procedures.
Stainless Steel Option
Premium SS 304 and SS 316L materials available for superior corrosion resistance in demanding environments.
Wide Range of End Configurations
Comprehensive selection of JIC, NPT, NPSM, and ORB connections to meet diverse application requirements.
One Piece Design
Reduces system complexity and eliminates potential leakage paths for enhanced reliability and performance.
No-Skive Technology
Offers easy, efficient, and safe production processes by eliminating the need for hose skiving operations.
How to Choose the Right HY Series Fittings for Applications
Materials
- SS 304: General industrial applications with excellent corrosion resistance
- SS 316L: Marine and chemical environments requiring superior corrosion resistance
- Custom Materials: Specialized alloy compositions tailored to meet specific application requirements and performance standards
End Connection Types
- JIC Male: 37° flare connection for high-pressure hydraulic systems
- JIC Female Swivel: Rotating 37° flare connection for flexible assembly
- NPT Male: Tapered pipe thread for secure threaded connections
- NPSM Female Swivel: Straight pipe thread with O-ring seal
- ORB: O-Ring Boss connection for leak-proof hydraulic applications
Hose Selection
- Identify hose inner diameter and outer diameter specifications
- Determine hose type: wire braid or thermoplastic hose
- Match dimensions with HY Series compatibility chart for proper crimp specs
Application Scenarios
- Consider system operating pressure and temperature ranges
- Evaluate environmental conditions: marine, chemical, or industrial settings
- Ensure leak-free performance with proper pressure calculations and material selection
Need help selecting the right HY Series fitting? Our technical team provides comprehensive support.
Industrial Applications
Stainless HY Series fittings excel in demanding industrial hydraulic applications where reliability and performance are critical. These premium fittings are extensively used in industrial hydraulic systems powering manufacturing equipment, injection molding machines, and automated production lines. Heavy-duty machinery applications including construction equipment, agricultural machinery, and mining equipment benefit from the superior strength and corrosion resistance of stainless steel construction.
Primary Industries
- Marine & Offshore Systems
- Food & Beverage Processing
- Chemical Processing Plants
- Pharmaceutical Manufacturing
Equipment Applications
- OEM Production Lines
- Mobile Hydraulic Equipment
- Stationary Industrial Systems
- High-Pressure Test Equipment
Frequently Asked Questions
What hoses are compatible with HY Series fittings?
HY Series fittings are compatible with most standard hydraulic hoses including SAE 100R1, 100R2, 100R12, and thermoplastic hoses. They work with hoses from major manufacturers and are available in sizes from 1/4" to 2" diameter with various pressure ratings to match specific hose specifications.
Are HY Series fittings interchangeable with Parker or Eaton equivalents?
Yes, TITAN Fluid's HY Series fittings maintain dimensional compatibility with major OEM brands including Parker, Eaton, and other industry-standard manufacturers. Our fittings meet or exceed original equipment specifications while offering competitive pricing and availability advantages.
What pressure ratings can HY Series fittings handle?
HY Series fittings are designed for high-pressure applications with working pressures typically ranging from 3,000 to 6,000 PSI depending on size and configuration. Burst pressures exceed 4:1 safety ratios, and specific ratings are available for each fitting size and thread type.
What material options are available for HY Series fittings?
Standard HY Series fittings are manufactured from 316 stainless steel for maximum corrosion resistance. We also offer 304 stainless steel for cost-sensitive applications and can provide specialty materials including custom alloys for specific environmental requirements.
What crimping equipment is required for HY Series fittings?
HY Series fittings require standard hydraulic crimping machines with appropriate die sets. Most major crimping equipment manufacturers offer compatible dies, and we provide detailed crimping specifications and die recommendations for optimal assembly results and performance.
