Stainless 56 Series Fittings
Reliable Hydraulic Connections for SAE 100 R7/R8 Hoses
Stainless 56 Series Fittings are precision-engineered two-piece crimp fittings specifically designed for thermoplastic hydraulic hose assemblies. These premium stainless steel fittings are fully interchangeable with Parker 56 Series, providing reliable, leak-free connections for SAE 100 R7 and R8 hoses. Manufactured from 316 stainless steel, our 56 Series fittings deliver exceptional corrosion resistance, extended service life, and superior performance in demanding hydraulic applications.
The unique crimp design of Stainless 56 Series Fittings ensures optimal sealing performance in fluid power systems, industrial hydraulics, mobile equipment, and OEM machinery. With TITAN Fluid's precision CNC machining and stringent quality control, these fittings meet the highest industry standards for dimensional accuracy and performance reliability.
Key Benefits & Features
316 Stainless Steel Construction
Exceptional corrosion resistance for harsh environments
Parker 56 Series Interchangeable
Direct replacement with equivalent performance
SAE 100 R7 & R8 Compatible
Optimized for thermoplastic hose assemblies
Reliable Crimp Design
Ensures high-pressure performance and leak-free operation
Industrial & OEM Applications
Perfect for hydraulic, industrial, and OEM machinery
Precision CNC Machined
Dimensional accuracy and consistent quality
56 Series Product Range
Comprehensive selection of stainless steel 56 series hydraulic hose fittings for SAE 100 R7 R8 hoses

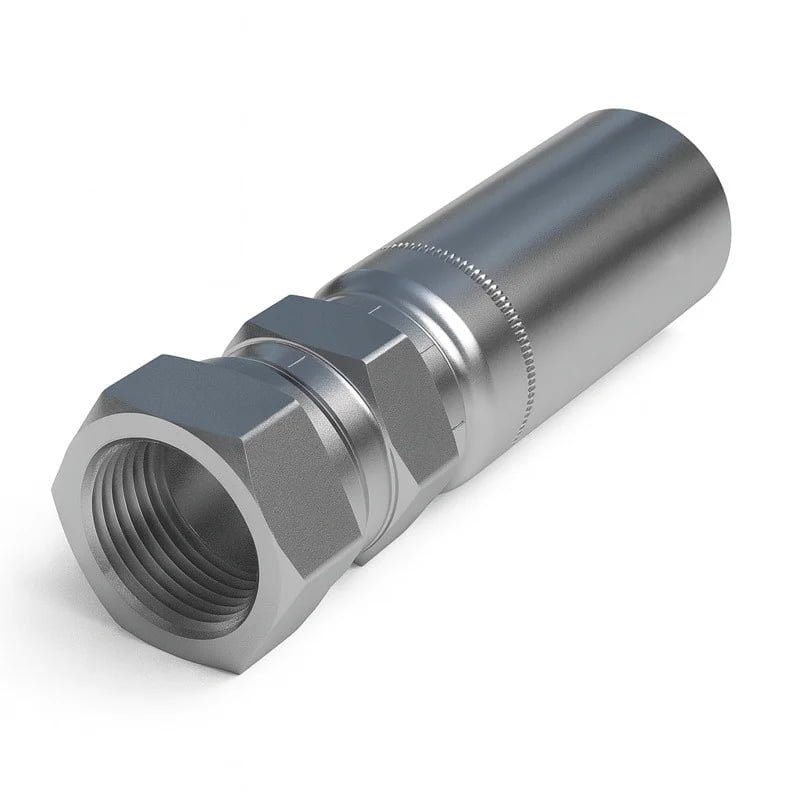

56 Series Female JIC Hose Fitting
- Interchange: Parker 10656
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Swivel Female JIC 37°

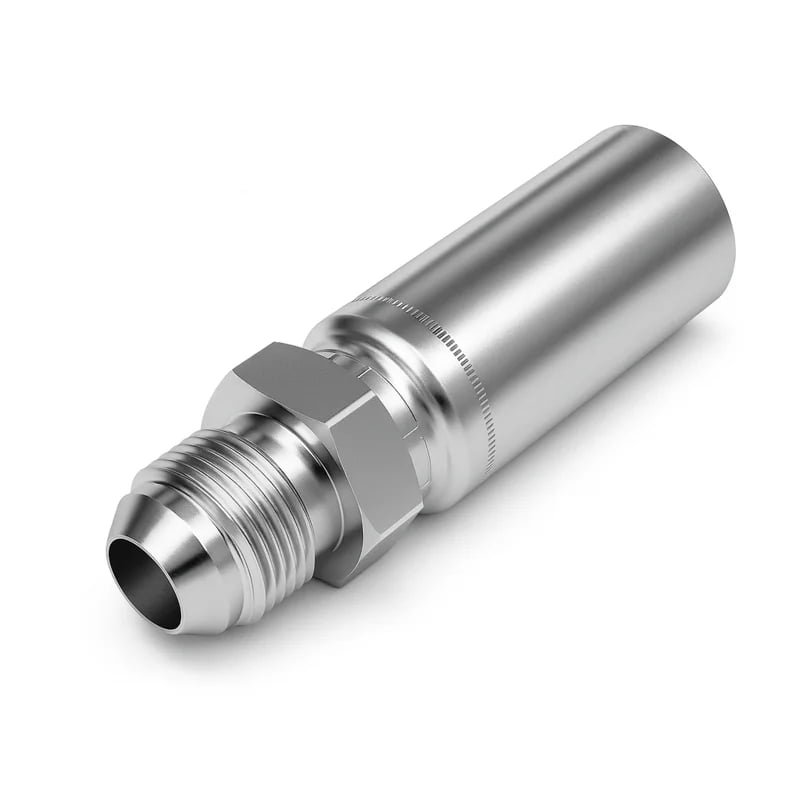

56 Series Male 45° Flare SAE Hose Fitting
- Interchange: Parker 10456
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female SAE 45°

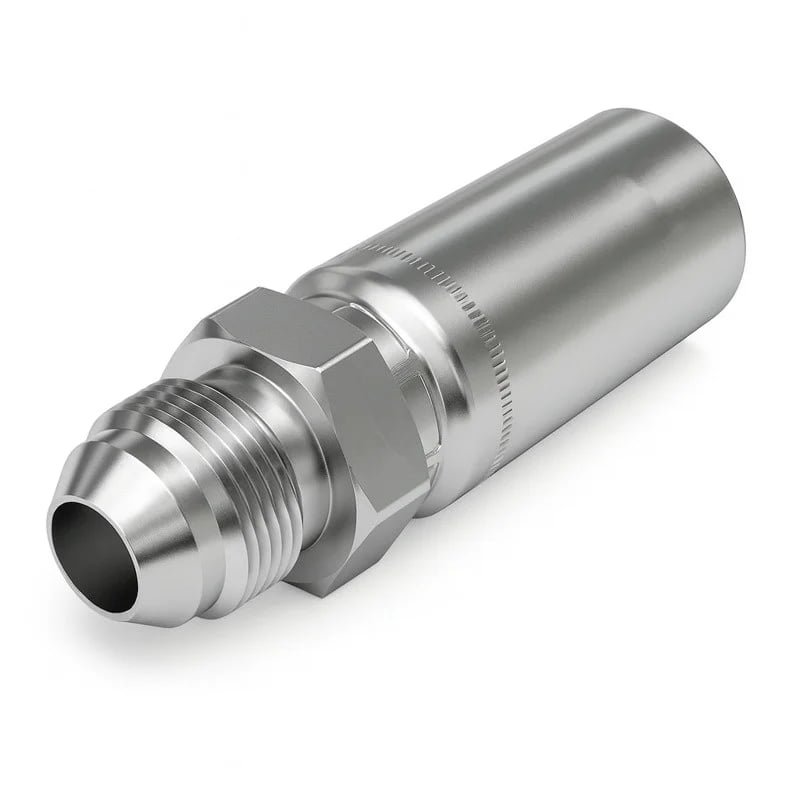

56 Series Male 37° Flare JIC Hose Fitting
- Interchange: Parker 10356
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male JIC 37°
56 Series Male ORFS Hose Fitting
- Interchange: Parker 1J056
- Material: SS 304, SS 316L
- Size: 1/4" - 1/2"
- Thread: Male O-Ring Face Seal

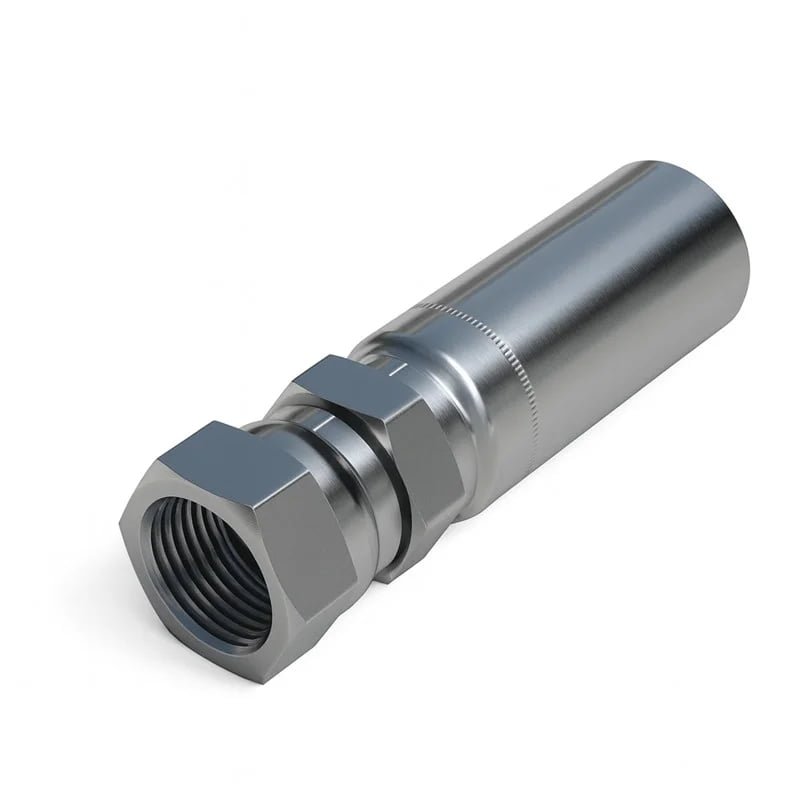

56 Series Female ORFS Hose Fitting
- Interchange: Parker 1JC56
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: O-Ring Face Seal

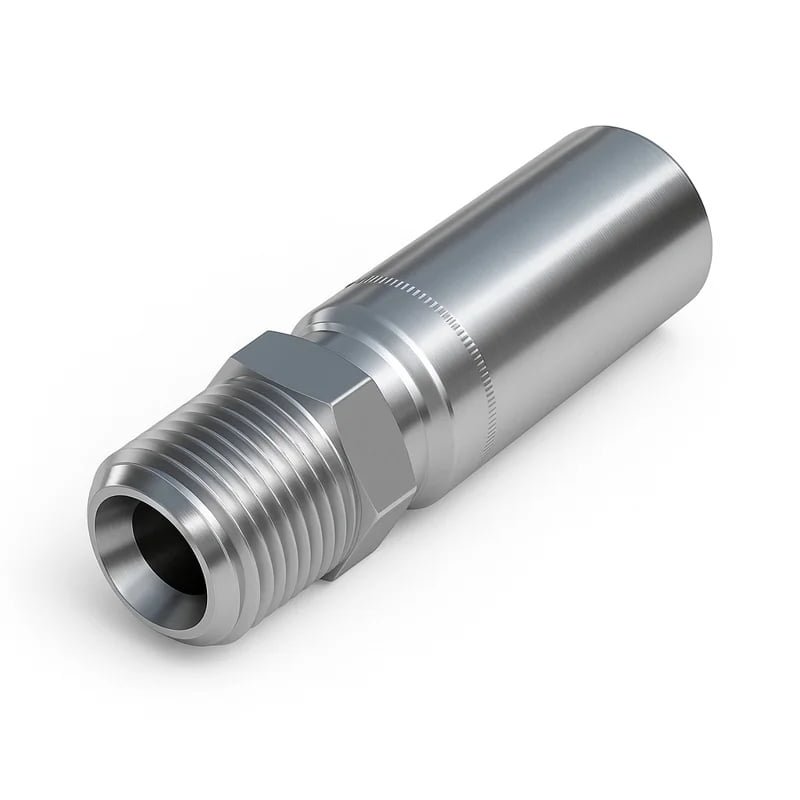

56 Series Rigid Male NPT Hose Fitting
- Interchange: Parker 10156
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male Taper Pipe

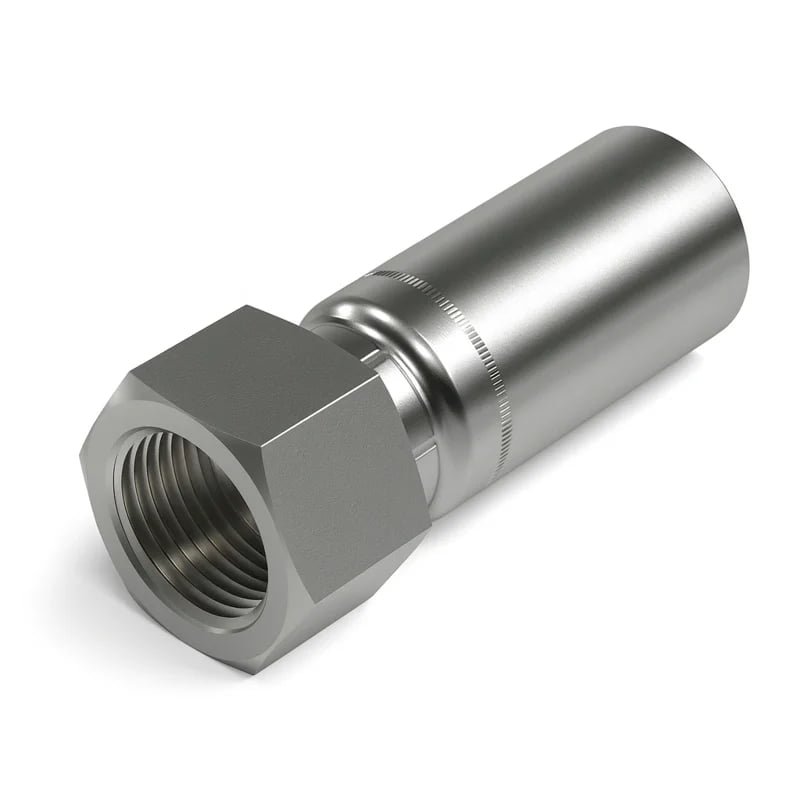

56 Series Female NPT Hose Fitting
- Interchange: Parker 10256
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Rigid Female Pipe

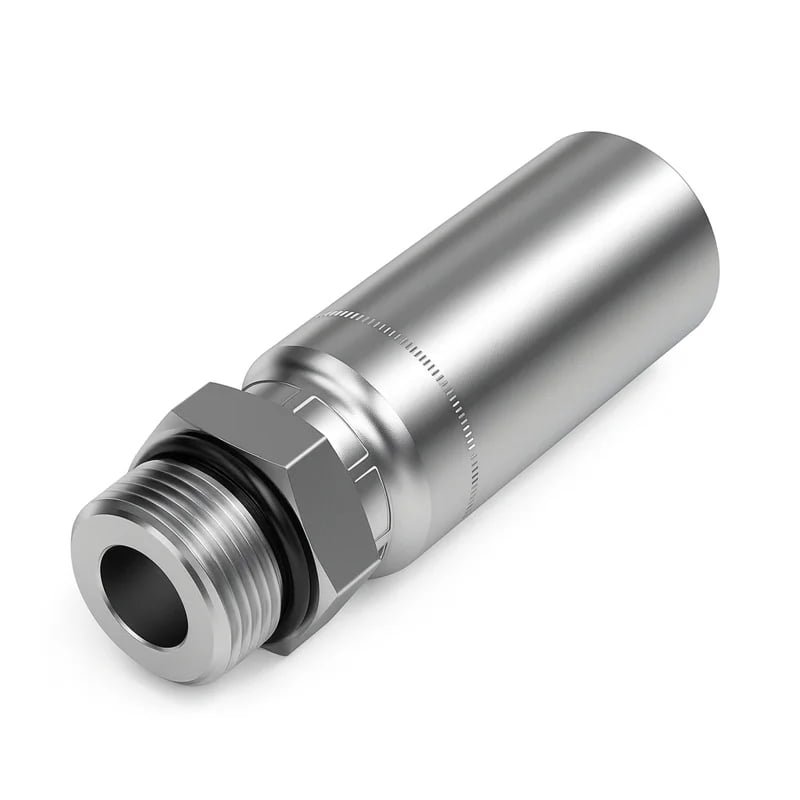

56 Series Rigid Male ORB Hose Fitting
- Interchange: Parker 10556
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male O-Ring Boss

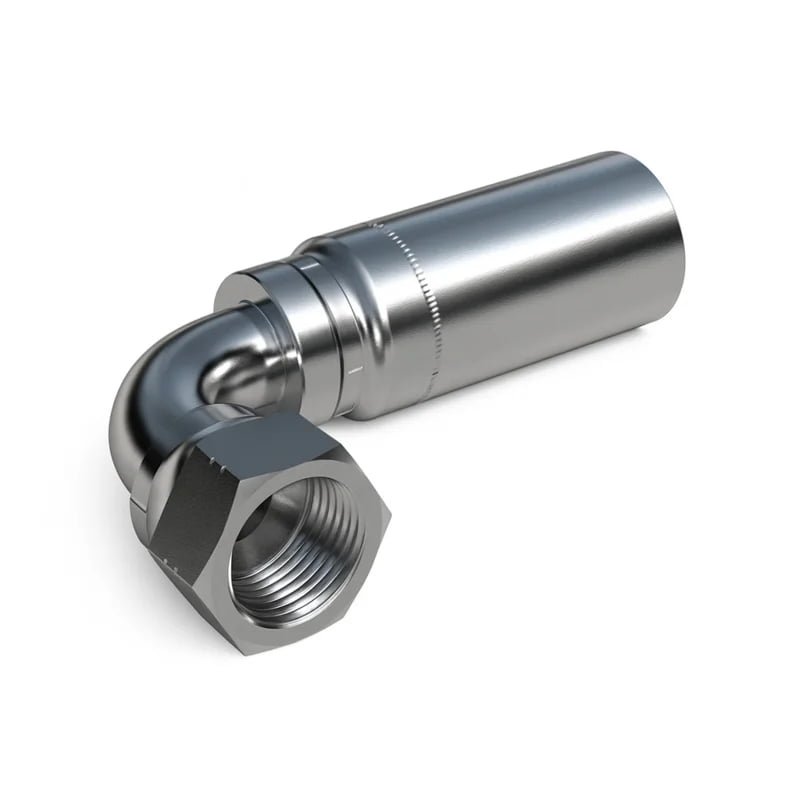

56 Series Female Swivel JIC 90° Elbow Fitting
- Interchange: Parker 13956
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°
56 Series Female Swivel Metric Hose Fitting
- Interchange: Parker 1CA56
- Material: SS 304, SS 316L
- Size: M16- M36
- Thread: Female Metric O-Ring

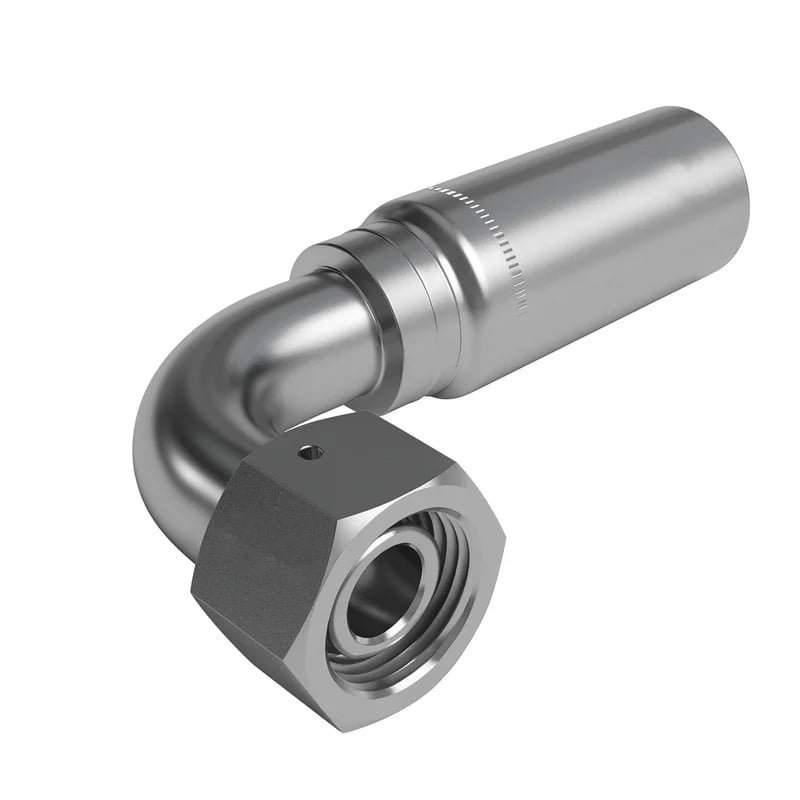

56 Series Female Swivel Metric 90° Elbow Fitting
- Interchange: Parker 1CF56
- Material: SS 304, SS 316L
- Size: M16- M36
- Thread: Female Metric O-Ring

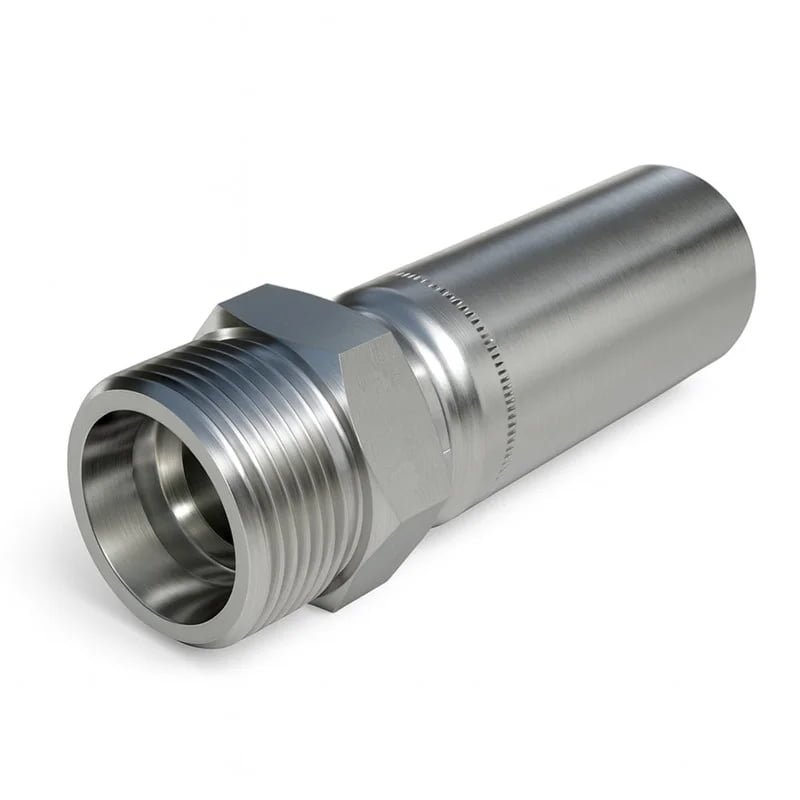

56 Series Male 24° Cone Metric Hose Fitting
- Interchange: Parker 1D056
- Material: SS 304, SS 316L
- Size: M16- M36
- Thread: Male Metric 24° Cone
How to Choose the Right 56 Series Fittings For Applications
Material Selection
- SS 304: General purpose applications with moderate corrosion resistance
- SS 316L: Enhanced corrosion resistance for marine and chemical environments
- Custom Alloys: Specialized materials for extreme conditions
End Connection Types
- BSP (British Standard Pipe): Common in European and Commonwealth markets
- NPT (National Pipe Thread): Standard in North American applications
- JIC (Joint Industry Council): High-pressure hydraulic systems
- ORFS (O-Ring Face Seal): Leak-free connections in critical applications
- Metric Threads: International standard for global compatibility
Hose Selection
- SAE 100 R7: Medium pressure thermoplastic hose applications
- SAE 100 R8: High pressure thermoplastic hose systems
- Temperature Rating: Consider operating temperature range (-40°C to +100°C)
- Pressure Rating: Match fitting and hose pressure specifications
Application
- Marine Systems: Corrosion-resistant solutions for offshore equipment
- Food & Beverage: Hygienic applications requiring clean connections
- Chemical Processing: Aggressive media handling with chemical compatibility
- High-Temperature Systems: Thermal cycling and oxidation resistance
- Clean Room Environments: Contamination-free hydraulic connections
Applications & Industries
Stainless 56 Series fittings excel in mobile hydraulics applications, light industrial machinery, fluid transfer systems, and OEM assemblies where thermoplastic hoses are preferred for their flexibility and chemical resistance. These fittings are particularly well-suited for systems utilizing SAE 100 R7 and R8 hoses in environments requiring superior corrosion resistance.
Mobile Hydraulics
Construction equipment, agricultural machinery
Industrial Machinery
Manufacturing equipment, automation systems
Fluid Transfer
Chemical processing, food & beverage
OEM Assemblies
Custom hydraulic solutions, specialty equipment
Frequently Asked Questions
Are Stainless 56 Series fittings compatible with Parker 56 Series?
Yes, our Stainless 56 Series fittings are fully interchangeable with Parker 56 Series, offering equivalent dimensional accuracy and performance while providing superior corrosion resistance through 316 stainless steel construction.
Can 56 Series fittings be used with SAE 100 R7 and R8 hoses?
Absolutely. 56 Series fittings are specifically designed and optimized for SAE 100 R7 and R8 thermoplastic hoses, providing reliable crimp connections for high-pressure hydraulic applications.
What pressure ratings can 56 Series fittings handle?
Our 56 Series fittings are engineered to meet or exceed the pressure ratings of their corresponding hose assemblies, typically handling working pressures up to 5,000 PSI depending on size and configuration.
What materials are available for 56 Series fittings?
TITAN Fluid manufactures 56 Series fittings primarily in 316 stainless steel for superior corrosion resistance. We also offer SS 304 and custom alloy materials for specialized applications.
How are 56 Series fittings crimped?
56 Series fittings utilize a two-piece crimp design with a ferrule and insert that creates a permanent seal when crimped using standard hydraulic crimping equipment. Proper crimping specifications ensure leak-free performance.
Partner with TITAN Fluid
Get competitive OEM pricing on premium Stainless 56 Series fittings. Fast delivery, superior quality, and unmatched service for your hydraulic projects.
