Stainless Steel
One Piece Hose Fittings
High-Performance Crimp Hose Ends for Hydraulic Systems
Our stainless steel one piece hose fittings are precision-machined crimp fittings designed for secure hydraulic hose assemblies. Built for high-pressure performance and corrosion resistance, these integrated one-piece hose ends provide reliable sealing and long service life in demanding industrial environments.
OEM and bulk supply available for distributors and hydraulic equipment manufacturers worldwide.
What Are Stainless Steel One Piece Hose Fittings?
Stainless steel one piece hose fittings are integrated crimp fittings designed for high-pressure hydraulic hose assemblies. Unlike traditional two-piece designs, the stem and ferrule are manufactured as a single unit, ensuring precise alignment, consistent crimp performance, and reduced assembly error.
The one-piece construction improves structural strength and simplifies hose production, making these fittings ideal for bulk crimping operations and OEM hydraulic systems. Manufactured from corrosion-resistant stainless steel, they provide secure hose retention and reliable sealing in demanding industrial environments.
Our stainless steel one piece crimp hose fittings are dimensionally interchangeable with Parker® one-piece series and other major international hydraulic brands, allowing seamless replacement and compatibility in existing systems.
Key Features
- Integrated Stem & Ferrule Design
- Improved Crimp Consistency
- Reduced Assembly Time
- Secure Hose Retention
- High-Pressure Capability (Up to 6,000 PSI)
- SS 304 / SS 316 / SS 316L Options
- Compatible with SAE 100R1 / R2 / R7 / R8 / R12 / R13 / R14 / R15
- Interchangeable with Parker® and Equivalent Series
Stainless One Piece Crimp Fittings Categories
Explore our comprehensive range of precision-engineered stainless steel one piece crimp hose fittings designed for high-pressure hydraulic systems and OEM hose assembly production.
43 Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, NPSM, ORB, ORFS, Flange
- • Size: 1/4" - 2"
- • Compatibility: Parker 43 series
- • Use with hose: R1, R2 braided hose, and R16, R17 and 2SC hoses.

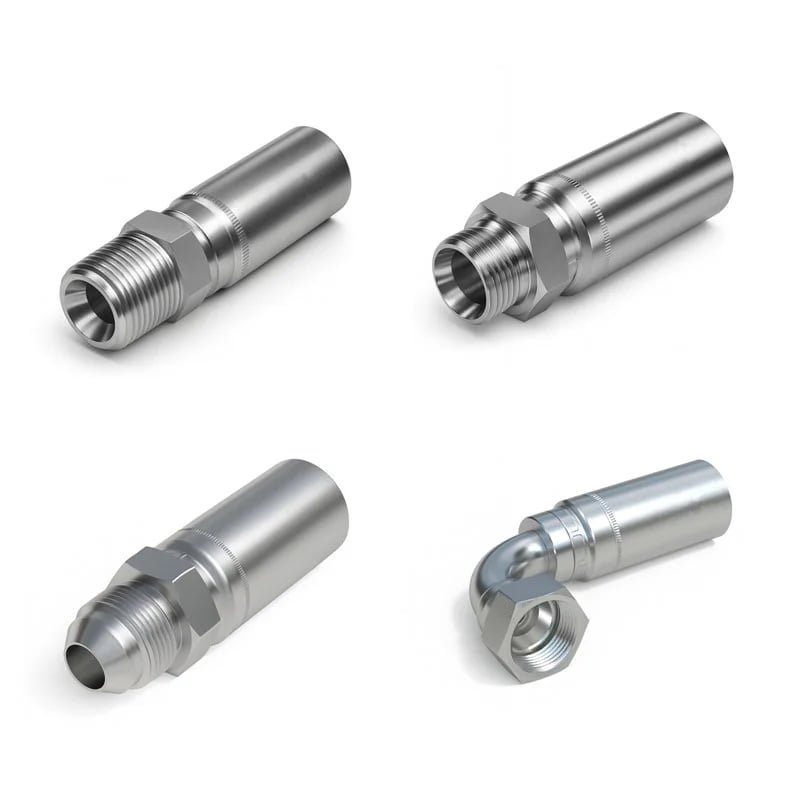

HY Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, NPSM, ORB, ORFS, Flange
- • Size: 1/4" - 2"
- • Compatibility: Parker HY series
- • Use with hose: SAE 100 R1, SAE 100 R2, SAE 100 R6, SAE 100 R7, SAE 100 R8, SAE 100 R16

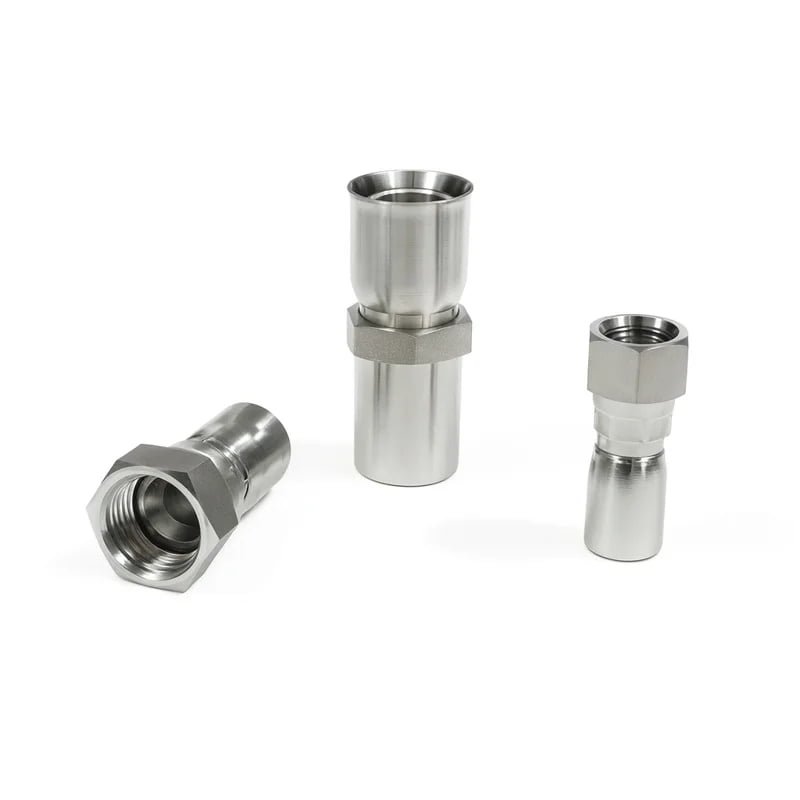

91 Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, NPSM, ORB, ORFS
- • Size: -04 - 16
- • Stripping Form: No-Skive
- • Compatibility: Parker 91 series
- • Use with hose: SAE 100 R14 PTFE hose
56 Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, NPSM, ORB, ORFS, Metric
- • Size: 1/4" - 1"
- • Stripping Form: No-Skive
- • Compatibility: Parker 56 series
- • Use with hose: SAE 100 R7/R8 hoses
71 Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, ORB, ORFS, Flange
- • Size: 3/8" - 2"
- • Stripping Form: No-Skive
- • Compatibility: Parker 71 series
- • Use with hose: SAE 100 R12 hoses

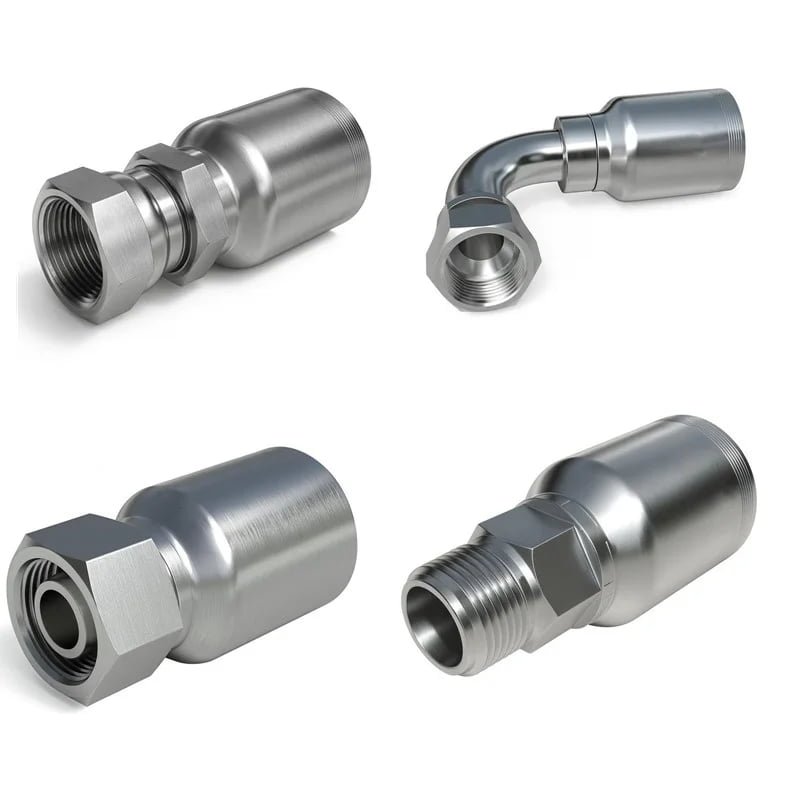

78 Series Crimp Fittings
- • Material: SS 304, SS 316L
- • Thread: JIC, NPT, Flange, ORFS, Metric
- • Size: 3/4" - 2"
- • Stripping Form: No-Skive
- • Compatibility: Parker 78 series
- • Use with hose: SAE 100 R13/R15 hoses
Technical Specifications
Stainless Steel One Piece Crimp Hose Fittings Series
Technical Overview
Our stainless steel one piece crimp hose fittings series is engineered for high-pressure hydraulic hose assemblies across multiple performance classes, including 43, HY, 56, 71, 78, and 91 Series.
Unlike traditional two-piece crimp systems, the integrated stem and ferrule construction ensures consistent crimp diameter control, reduced assembly error, and improved structural integrity under vibration and pressure cycling.
Manufactured from corrosion-resistant stainless steel and precision CNC machined for dimensional accuracy, this series supports a wide range of thread standards and hose constructions used in industrial, marine, oil & gas, and heavy equipment applications.
Each series is designed to match specific hose reinforcement types and pressure ratings, ensuring optimized crimp performance and long-term system reliability.
Key Technical Specifications
Series Coverage
- • 43 Series
- • HY Series
- • 56 Series
- • 71 Series
- • 78 Series
- • 91 Series
Construction
- • One Piece Integrated Stem & Ferrule
- • Optional No-Skive Design
- • CNC Precision Machined
Material Options
- • Stainless Steel 304
- • Stainless Steel 316
- • Stainless Steel 316L
Thread Types Available
- • JIC 37° Flare
- • NPT / NPSM
- • ORB (O-Ring Boss)
- • ORFS (O-Ring Face Seal)
- • SAE Flange
- • Metric Threads
Size Range
- • 1/4" - 2"
- • -04 to -32 (Series Dependent)
Hose Compatibility
- • SAE 100R1 / R2
- • SAE 100R6 / R7 / R8
- • SAE 100R12
- • SAE 100R13 / R15
- • SAE 100R14 (PTFE)
Pressure Rating
- • Up to 6,000 PSI
- • Varies by series & hose
Interchangeability
- • Parker® compatible dimensions
- • Major crimping equipment
Applications of Stainless Steel One Piece Crimp Hose Fittings
Overview
Our stainless steel one piece crimp hose fittings are widely used in high-pressure hydraulic systems requiring reliable crimp integrity, corrosion resistance, and long service life. The integrated design ensures consistent performance in dynamic and demanding environments.
Industry Applications
- Construction Equipment
- Agricultural Machinery
- Oil & Gas Systems
- Marine & Offshore
- Mining Equipment
- Hydraulic Power Units
- Chemical Processing Systems
- OEM Hose Assembly Production
One Piece Hose Fittings Series Comparison
Engineering Selection Guide
Our stainless steel one piece crimp hose fittings series is structured to support different hose constructions and pressure classes, ranging from thermoplastic hoses to ultra high-pressure spiral hose systems.
Each series is engineered to match specific reinforcement types and impulse performance requirements, ensuring proper crimp stability and long-term hydraulic reliability.
Selecting the correct series based on hose type and pressure rating is critical to achieving optimal sealing integrity and system safety.
Series Specifications
| Series | Hose Type | Pressure Class | Typical Use |
|---|---|---|---|
| 43 | SAE 100R1 / R2 | Medium | General hydraulic |
| 56 | SAE 100R7 / R8 | Low-Medium | Thermoplastic systems |
| HY | SAE 100R1 / R2 / R7 | Medium | OEM production |
| 71 | SAE 100R12 | High | Heavy-duty systems |
| 78 | SAE 100R13 / R15 | Ultra High | Severe duty |
| 91 | SAE 100R14 (PTFE) | Medium-High | Chemical & high-temp |
Why Choose Our Stainless Steel One Piece Hose Fittings
As a dedicated manufacturer of stainless steel one piece crimp hose fittings, we focus on dimensional precision, consistent crimp performance, and long-term system reliability.
Our fittings are engineered to meet international hydraulic standards and are dimensionally interchangeable with major global brands, ensuring seamless integration into existing hydraulic systems.
With over 15 years of manufacturing experience, we support OEM customers, hydraulic distributors, and hose assembly factories worldwide with stable bulk supply and technical consistency across series.
Manufacturing Strength
- Precision CNC Machining
- Strict Tolerance Control
- 100% Thread Inspection
- Stable Bulk Production
Engineering Reliability
- One Piece Integrated Construction
- Consistent Crimp Diameter Control
- Vibration & Pressure Resistance
- Corrosion-Resistant Stainless Steel
Compatibility & Flexibility
- Interchangeable with Parker® One-Piece Series
- Compatible with Major Crimp Systems
- Wide Thread & Hose Coverage
- OEM / Private Label Available
Frequently Asked Questions
What is the difference between one piece and two piece hose fittings?
One piece hose fittings integrate the stem and ferrule into a single component, ensuring consistent alignment and improved crimp accuracy. Two piece fittings use a separate ferrule, which may require additional assembly steps. One piece designs simplify production and reduce assembly error in bulk hose manufacturing.
Which hose types are compatible with your one piece series?
Our series supports various hose constructions, including:
- SAE 100R1 / R2
- SAE 100R7 / R8 (Thermoplastic)
- SAE 100R12
- SAE 100R13 / R15
- SAE 100R14 (PTFE)
Correct series selection depends on hose reinforcement type and pressure rating.
Are your fittings interchangeable with Parker® series?
Yes. Our stainless steel one piece crimp hose fittings are dimensionally interchangeable with Parker® one-piece series and compatible with major hydraulic crimping systems.
What pressure ratings do your fittings support?
Pressure capability varies by hose type and series:
- 56 / 43 Series → Low to Medium Pressure
- 71 Series → High Pressure
- 78 Series → Ultra High Pressure
Maximum ratings depend on hose construction and crimp specification.
Do you offer stainless steel options?
Yes. We manufacture one piece hose fittings in:
316/316L is recommended for marine, chemical, and corrosive environments.
Can you support OEM or private label production?
Yes. We provide OEM manufacturing, custom markings, and bulk production for distributors and hydraulic assembly factories worldwide.
How do I choose the correct series?
Selection depends on:
- Hose type (R1 / R2 / R7 / R8 / R12 / R13 / R15 / PTFE)
- Required pressure rating
- Thread connection type
- Installation environment
Our technical team can assist with proper series matching.
Request Your Quote
Tell us about your requirements and we'll provide competitive pricing with technical specifications within 24 hours.
