Stainless Push Lock Hose Fittings
Reliable, Reusable Hydraulic Connections for SAE 100 R3/R4/R6 Hoses.
Stainless Push Lock Hose Fittings revolutionize hydraulic and pneumatic connections by enabling quick, reliable hose assembly without crimping tools or permanent attachment. These innovative fittings feature a unique barbed design that securely grips the inner diameter of compatible hoses, creating leak-free connections that can be assembled and disassembled repeatedly.
TITAN Fluid Stainless 82 Series Push Lock fittings are fully interchangeable with Parker 82 Series and are specifically engineered for SAE 100 R3, R4, and R6 hoses. Manufactured from premium 316 stainless steel, these fittings deliver superior corrosion resistance, making them ideal for hydraulic, pneumatic, lubrication, and low-pressure fluid transfer systems where clean assembly and reusability are essential.
The tool-free assembly process significantly reduces installation time and labor costs while ensuring consistent, reliable connections. Whether you're servicing hydraulic equipment in the field or designing new pneumatic systems, Stainless Push Lok Hose Fittings provide the flexibility and performance that modern industrial applications demand.
Key Benefits & Features
Interchangeable with Parker 82 Series
Direct replacement for Parker 82 Series Push Lok fittings with identical specifications
Compatible with SAE 100 R3, R4, and R6 Hoses
Engineered for optimal performance with low-pressure hydraulic hoses
Quick, Tool-Free Assembly
No crimping tools required - simple push-on installation saves time and labor
316 Stainless Steel Construction
Superior corrosion resistance for harsh environments and extended service life
Reusable Design
Can be disassembled and reused multiple times without performance degradation
Low to Medium Pressure Applications
Ideal for hydraulic, pneumatic, and lubrication systems up to rated pressures
Stainless 82 Series Push Lock Fittings
Complete range of Parker 82 Series equivalent Push Lok fittings for SAE 100 R3/R4/R6 hose connections

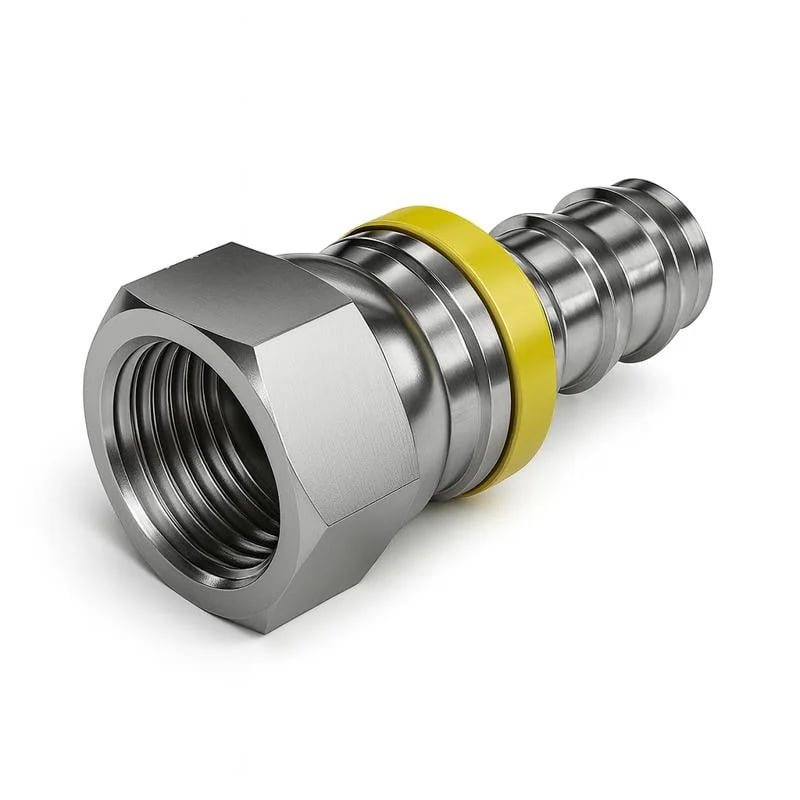

Stainless Female JIC Push Lock Hose Fitting
- Interchange: Parker 30682
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°

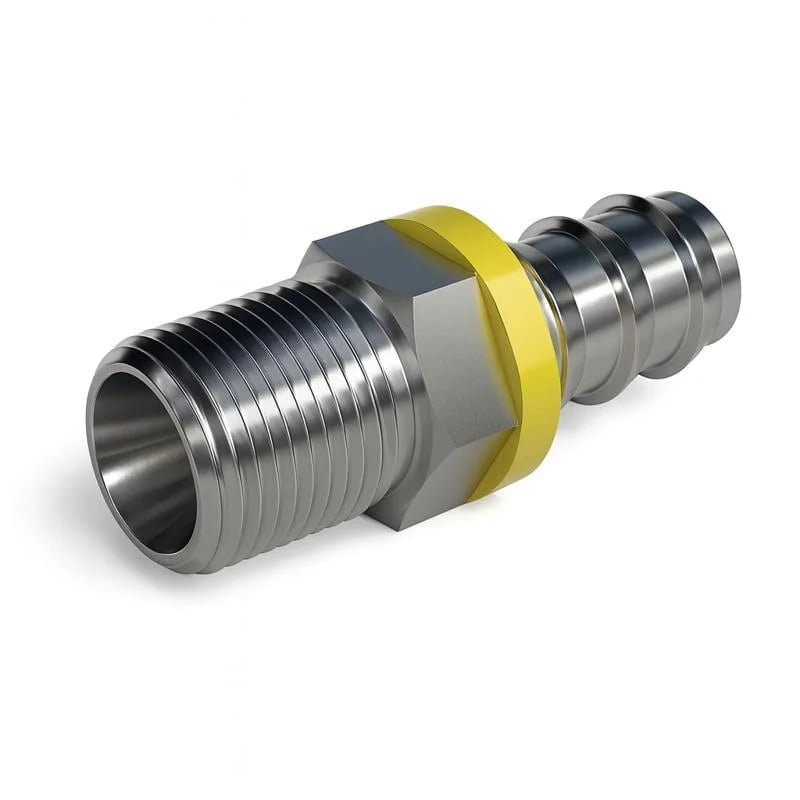

Stainless Male NPT Push Lock Hose Fitting
- Interchange: Parker 30182
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: NPT Male Pipe

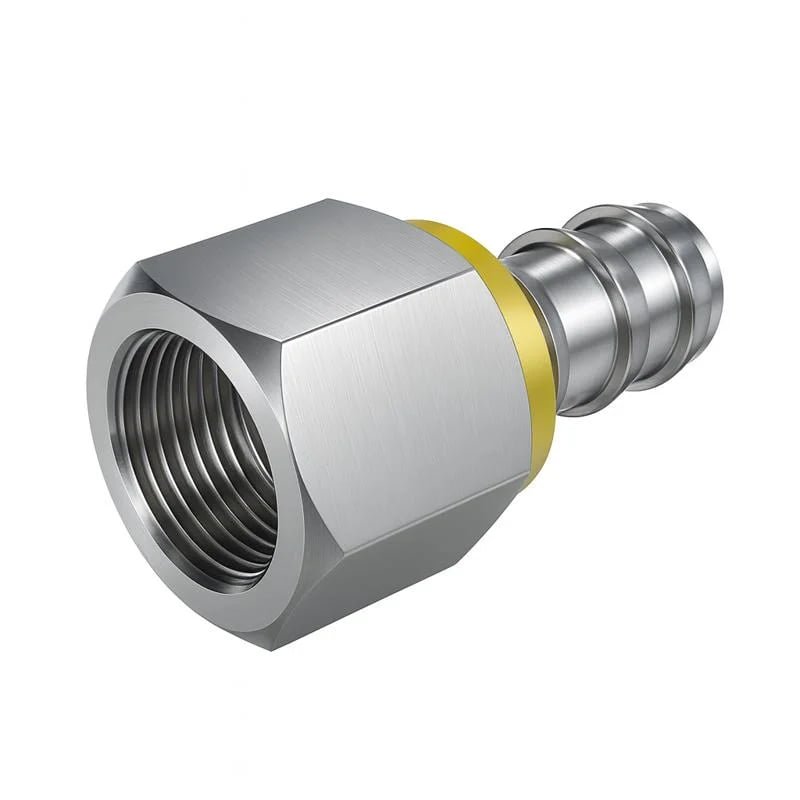

Stainless Female NPT Push Lock Hose Fitting
- Interchange: Parker 30282
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: NPT Female Pipe

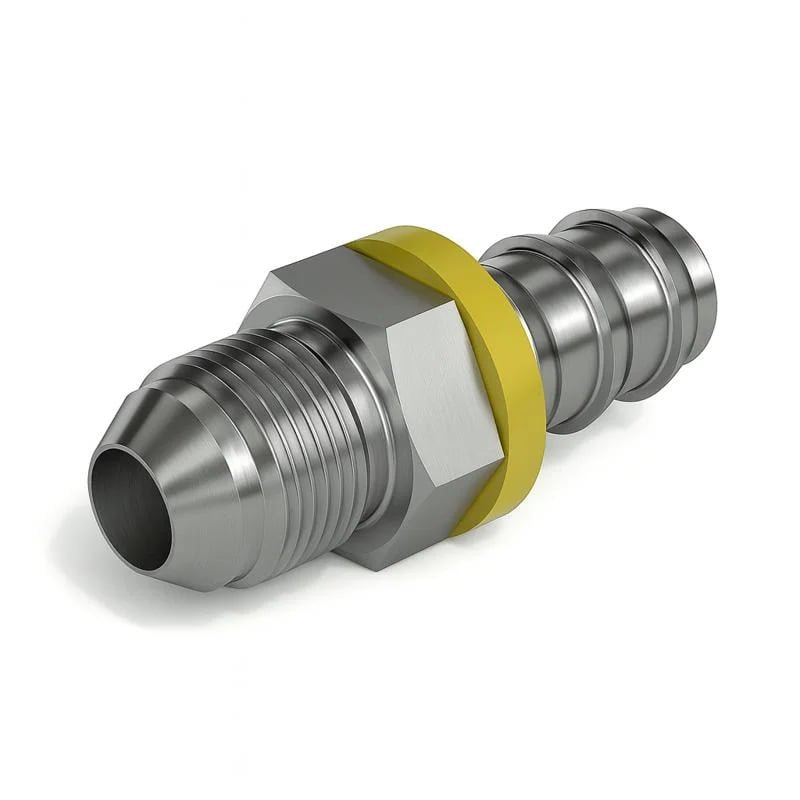

Stainless Male JIC Push Lock Hose Fitting
- Interchange: Parker 30382
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male JIC 37°
Stainless Female JIC Push Lock 45° Elbow
- Interchange: Parker 33782
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°
Stainless Female JIC Push Lock 90° Elbow
- Interchange: Parker 33982
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female JIC 37°

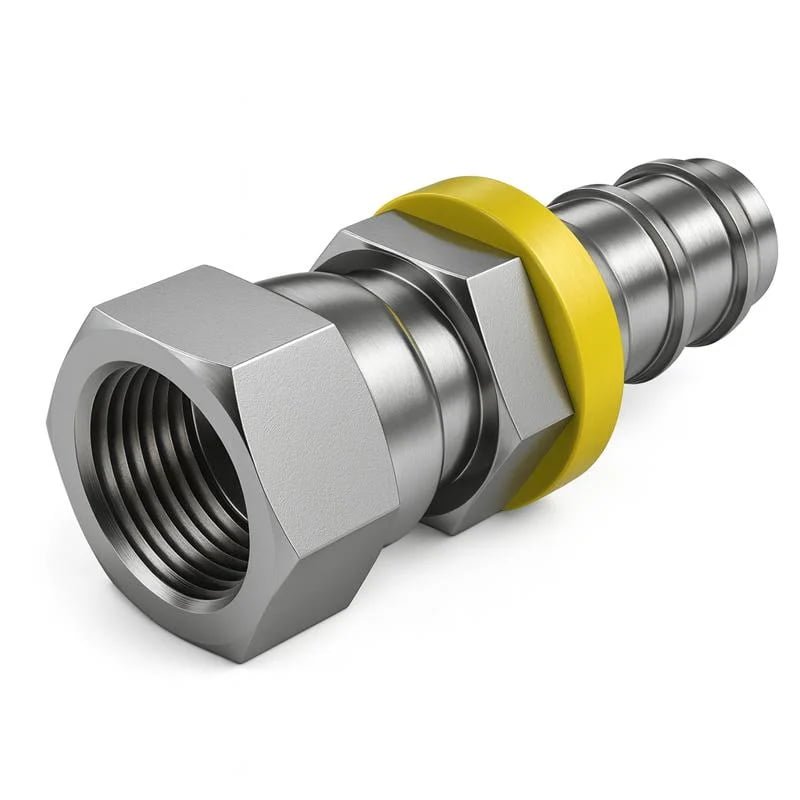

Female Seal-Lok Push Lock Hose Fitting
- Interchange: Parker 3JC82
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female ORFS

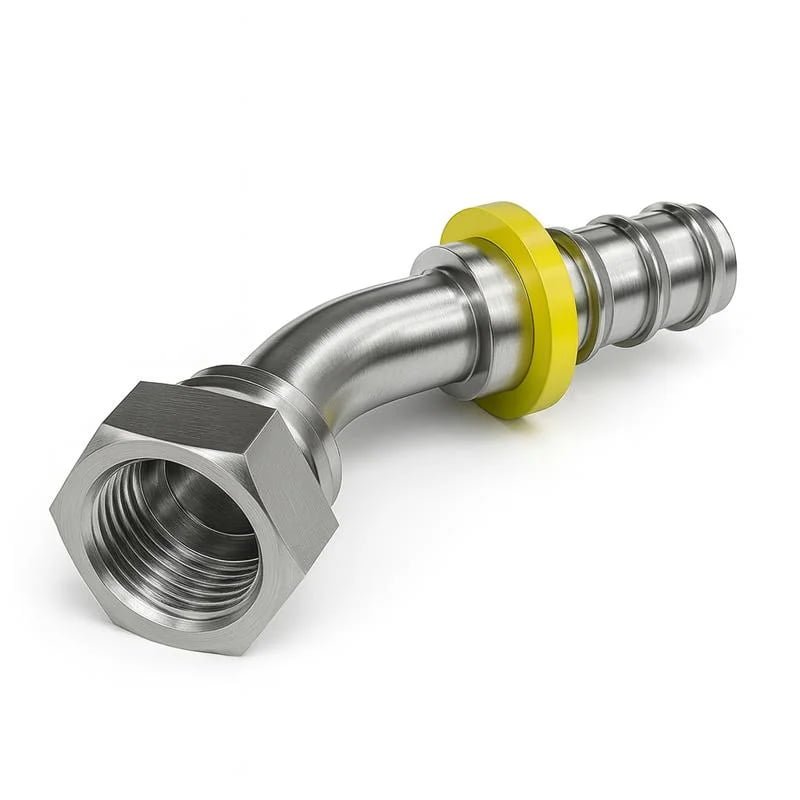

Female Seal-Lok Push Lock 45° Elbow
- Interchange: Parker 3J782
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female ORFS

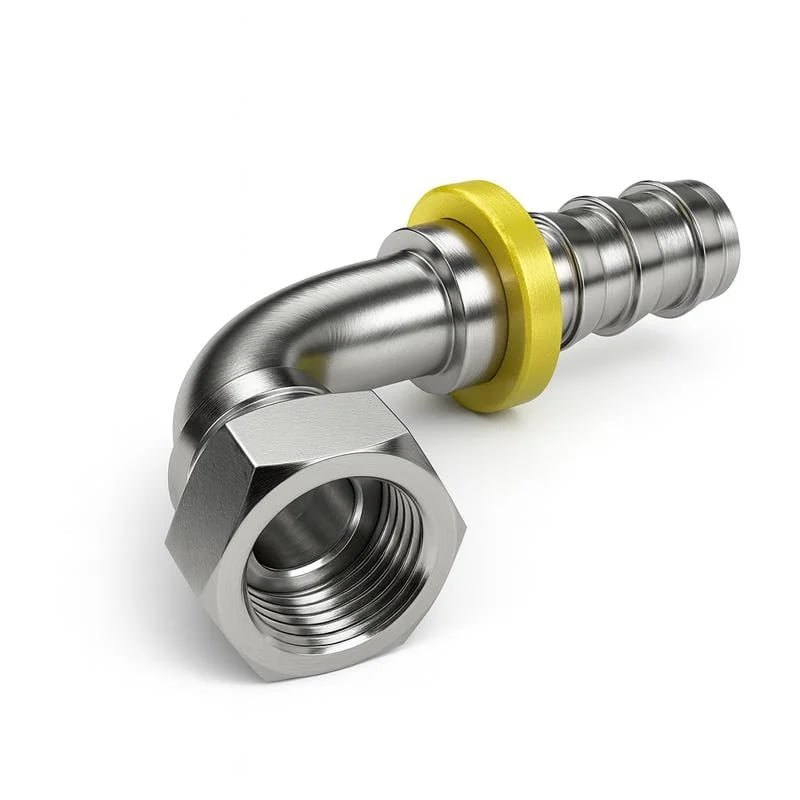

Female Seal-Lok Push Lock 90° Elbow
- Interchange: Parker 3J982
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female ORFS

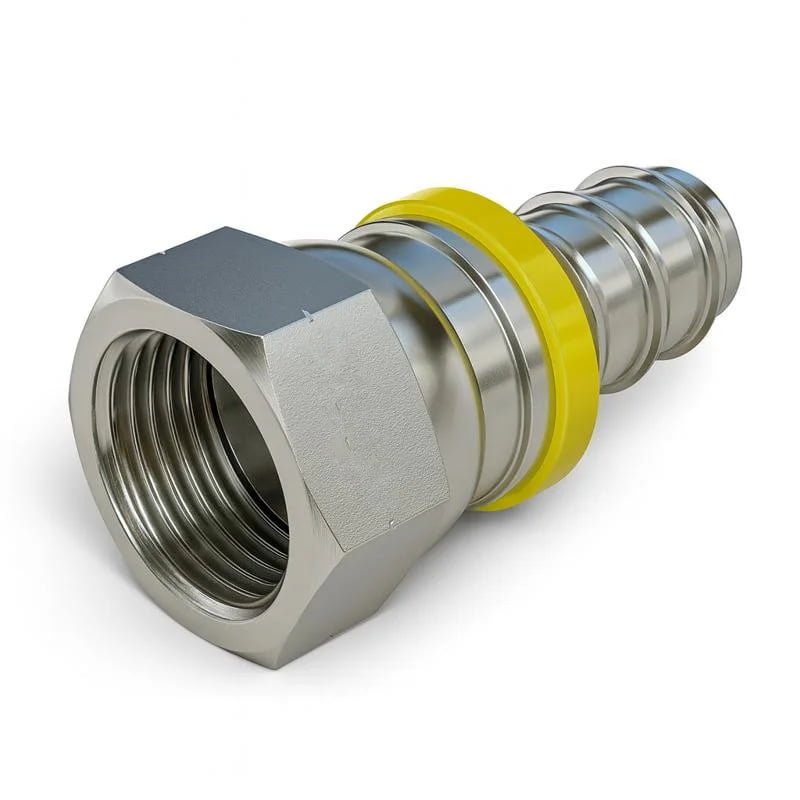

Female SAE 45° Push Lock Hose Fitting
- Interchange: Parker 30882
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Female SAE 45°

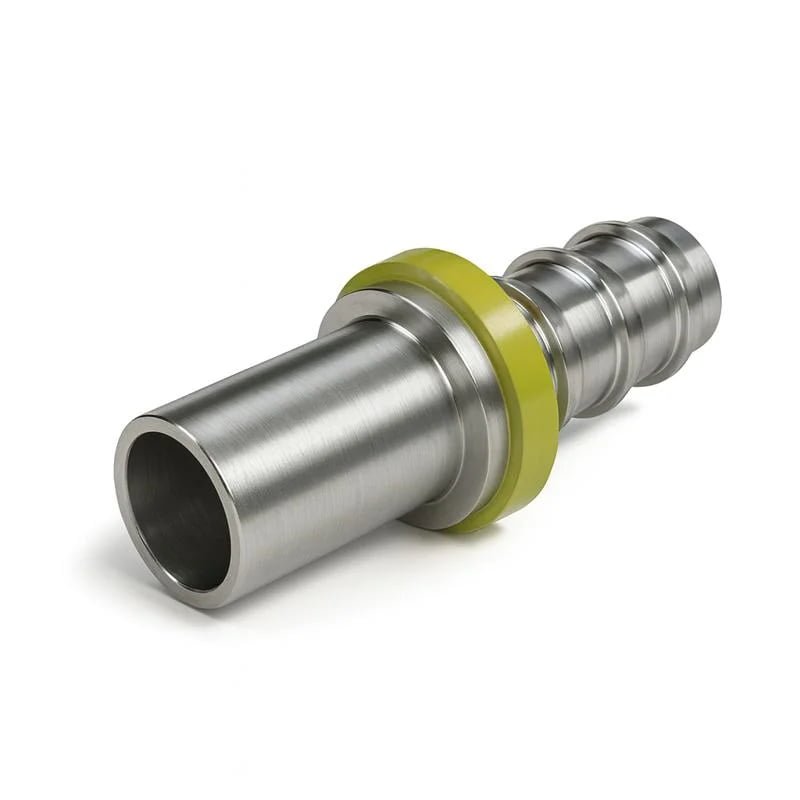

Male Standpipe Push Lock Hose Fitting
- Interchange: Parker 33482
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Male Standpipe

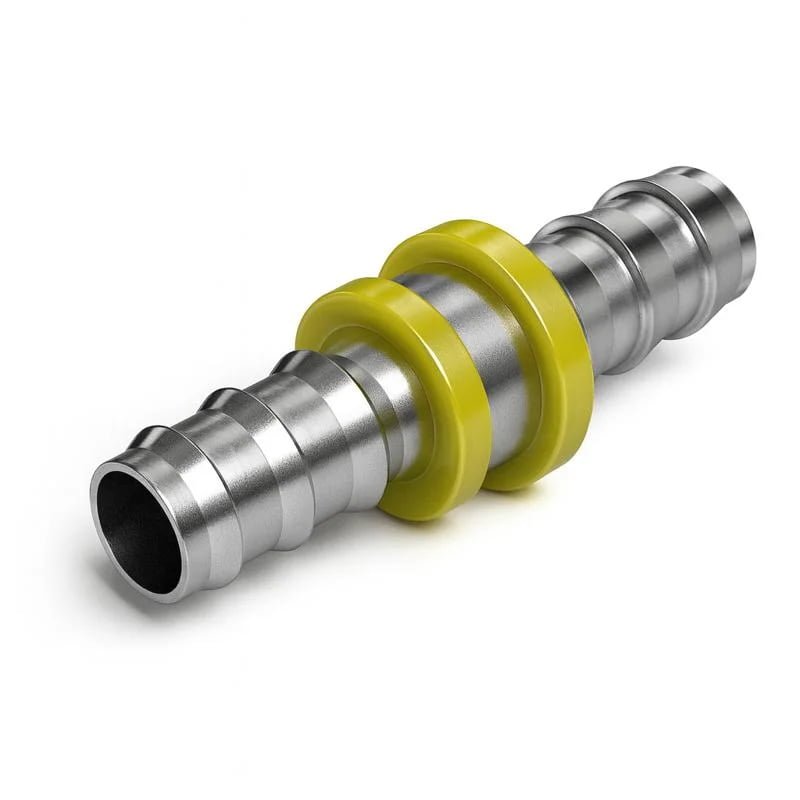

Stainless Push Lock Hose Fitting Union
- Interchange: Parker 38282
- Material: SS 304, SS 316L
- Size: 1/4" - 1"
- Thread: Hose Union
Technical Overview: 82 Series Push Lock Technology
Key Features
- No crimping tools or specialized equipment required
- Compatible with SAE 100 R3, R4, and R6 hoses
- Innovative barbed design for secure retention
- Leak-free performance under pressure
- Reusable and field-serviceable connections
Compatibility & Standards
- Fully interchangeable with Parker 82 Series
- Identical thread pitch and barb dimensions
- Maintains original pressure ratings
- 316 stainless steel construction
- Superior corrosion resistance
Technical Design
- Precision-machined barb profile
- Multiple retention rings for secure grip
- Even stress distribution prevents hose damage
- Mechanical interference fit technology
TITAN Fluid Advantages
- Precision machining capabilities
- Meets/exceeds global hydraulic standards
- Verified compatibility with leading hose manufacturers
- Rigorous quality control processes
- Guaranteed performance in demanding environments
Industrial Applications
Hydraulic Return Lines
Low-pressure return circuits where quick disconnection and reconnection are required for maintenance and testing procedures.
Pneumatic Tool Systems
Air tool connections and pneumatic control circuits where tool-free assembly reduces downtime and increases productivity.
Lubrication Circuits
Oil distribution systems and automatic lubrication equipment where corrosion resistance and clean assembly are essential.
General Industrial Equipment
Manufacturing machinery, mobile equipment, and process systems requiring frequent hose replacement or reconfiguration.
The stainless steel construction provides exceptional benefits in environments requiring corrosion resistance, such as marine applications, food processing, and chemical handling. The reusable nature of Push Lok fittings makes them particularly valuable for prototype development and field service applications where frequent hose changes are necessary.
Frequently Asked Questions
Are Stainless 82 Series Push Lok fittings compatible with Parker 82 Series?
Yes, TITAN Fluid Stainless 82 Series Push Lok fittings are fully interchangeable with Parker 82 Series fittings. They maintain identical specifications for thread pitch, barb dimensions, and pressure ratings, ensuring seamless compatibility with existing systems and hose assemblies.
Can Push Lok fittings be used with SAE 100 R3, R4, and R6 hoses?
Absolutely. 82 Series Push Lok fittings are specifically engineered for SAE 100 R3, R4, and R6 hoses. The barb design matches the inner diameter and reinforcement structure of these hoses to ensure secure retention and leak-free performance under rated pressures.
What is the maximum pressure rating for Push Lok fittings?
Push Lok fittings are designed for low to medium pressure applications, typically up to 250 PSI (17.2 bar) depending on hose size and type. The exact pressure rating varies by fitting size and hose specification. Consult our technical data sheets for specific pressure ratings by part number.
Are Push Lok fittings reusable?
Yes, Push Lok fittings are designed for multiple assembly and disassembly cycles without performance degradation. Unlike permanent crimped connections, they can be removed and reused numerous times, making them ideal for testing, prototyping, and applications requiring frequent hose changes.
Do Push Lok fittings require clamps or crimping tools?

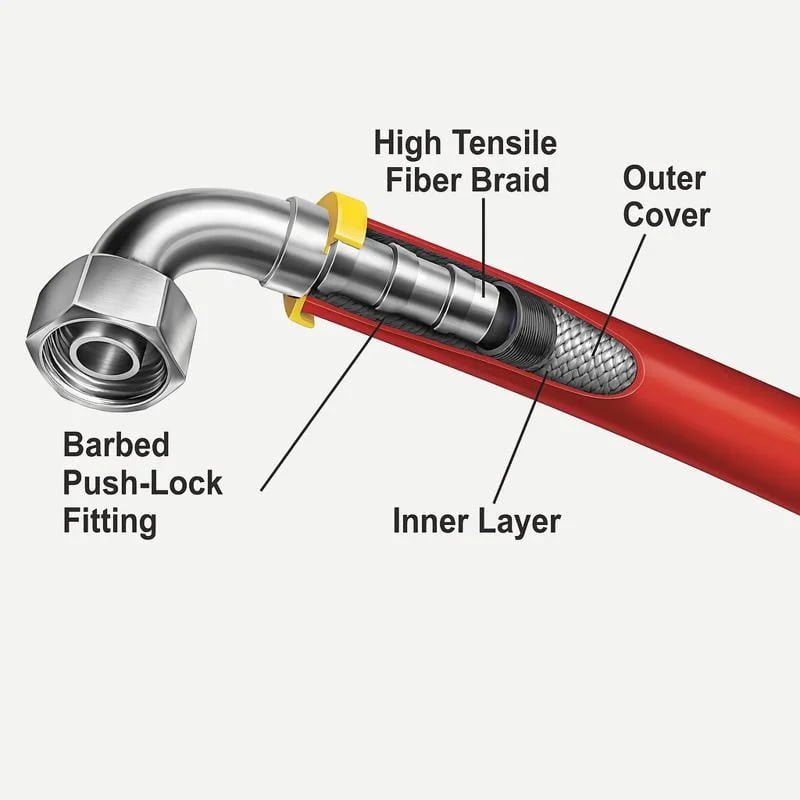

No tools are required for Push Lok fitting installation. The barbed design creates a mechanical interference fit with the hose that provides secure retention and sealing. Simply push the hose onto the barb until it reaches the hex body - no crimping, clamping, or special tools needed.
