What Are Stainless Steel Double Ferrule Tube Fittings?
Product Overview
Stainless steel double ferrule tube fittings are precision compression fittings designed for secure, leak-free connections in high-pressure instrumentation systems.
The two-ferrule compression design features a front ferrule for primary metal-to-metal sealing and a back ferrule for strong tube gripping. When tightened, both ferrules compress simultaneously, ensuring vibration resistance, pressure stability, and long-term reliability in demanding gas and fluid applications.
Typical Technical Characteristics
-
Material: 316 / 316L Stainless Steel
-
Design: Two-Ferrule Compression System
-
Tube Size Range: 1/8" - 2" (3mm - 25mm)
-
Pressure Capability: Suitable for High-Pressure Systems
-
Sealing Type: Metal-to-Metal Seal(Bite into the Tubing)
-
Applications: Instrumentation, Gas & Fluid Control
Types of Stainless Steel Double Ferrule Tube Fittings
Available in Straight, Elbow, Tee, Bulkhead, and Custom Configurations
Double Ferrule Tube Union Fittings
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Straight Union
- Pressure: Up to 6000 PSI
Double Ferrule 90° Elbow Union
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: 90° Elbow
- Application: Chemical Processing
Compression Tee Union
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Tee Union
- Ports: 3-Way Connection
Compression Bulkhead Union
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Bulkhead Union
- Mount: Panel Mounting
Double Ferrule Male Connector
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Male Connector
- Thread: NPT, BSPT
Double Ferrule Female Connector
- Material: SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Female Connector
- Thread: NPT, BSPT
Double Ferrule 90° Elbow Adjustable
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Adjustable
- Thread: SAE ORB, BSP
Compression 45° Elbow
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: 45° Elbow
- Thread: NPT, BSPT
Stainless Double Ferrule Cross Union
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Cross Union
- Ports: 4-Way Connection
Double Ferrule Compression Plug
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Cap & Plug Set
- Use: System Sealing
Double Ferrule Compression Nut
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Tube Nut
- Use: For Tube Fittings
Compression Sleeve/Ferrule
- Material: SS 304, SS 316L
- Size: 1/8"- 2"/ 4mm - 25mm
- Type: Ferrule Set
- Use: For Tube Fittings
Technical Specifications of Double Ferrule Tube Fittings
Double ferrule instrumentation tube fittings are precision stainless steel compression fittings designed for secure, leak-free connections in high-pressure instrumentation and process control systems.

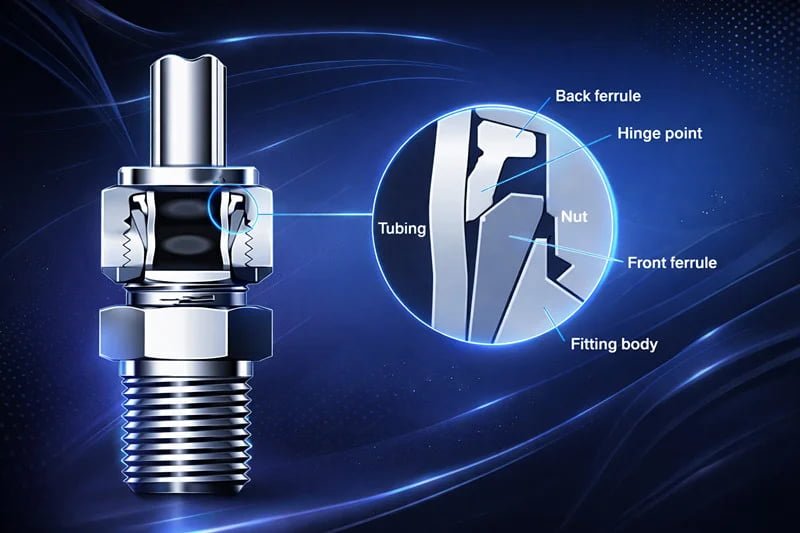

Each fitting assembly consists of four key components:
Fitting Body
Precision-machined housing designed for dimensional accuracy and system integration.
Nut
Applies axial force to compress the ferrules and secure the tube assembly.
Front Ferrule
Creates the primary metal-to-metal seal by swaging onto the tube surface.
Back Ferrule
Provides strong mechanical grip and prevents tube pull-out under pressure and vibration.
This two-ferrule compression design ensures consistent sealing performance, vibration resistance, and long-term reliability in demanding industrial environments.
Applications of Stainless Steel Double Ferrule Tube Fittings
Stainless steel double ferrule tube fittings are widely used in high-pressure instrumentation and fluid control systems where leak-free sealing, vibration resistance, and long-term reliability are critical. Their precision two-ferrule compression design makes them suitable for demanding industrial environments.
Typical Application Industries:
- Oil & Gas Instrumentation Systems
- Chemical & Petrochemical Processing Plants
- Power Generation & Energy Facilities
- Hydraulic & Pneumatic Control Lines
- Process Automation & Control Panels
- Marine & Offshore Equipment
- High-Purity Gas & Semiconductor Systems
- Food & Pharmaceutical Processing
