Stainless Steel ORB Hydraulic Adapters
Premium O-Ring Boss Hydraulic Fittings for OEMs, Wholesale Distributors & Hydraulic Systems
What Are Stainless Steel ORB Adapters?
Stainless steel ORB (O-Ring Boss) hydraulic adapters feature straight UNF threads with an elastomeric O-ring designed to create a secure seal against a machined port face. Unlike tapered thread connections, ORB fittings do not rely on thread interference for sealing. Instead, the O-ring is compressed between the adapter and the port surface to ensure consistent, leak-free performance in high-pressure hydraulic systems.
Manufactured according to SAE J1926 and ISO 11926 standards, ORB adapters provide reliable sealing integrity under vibration, pressure fluctuations, and mechanical stress.
Typical Technical Characteristics
- Thread Type: UNF Straight Thread (ORB)
- Standard: SAE J1926 / ISO 11926
- Sealing Method: O-Ring Face Compression
- Size Range: 1/4" - 2"
- Pressure Rating: Up to 6000 PSI (depending on size)
- Material Options: 304 / 316 / 316L Stainless Steel
- Surface Finish: CNC Precision Machined
Types of Stainless Steel ORB Adapters
Complete range of SAE J1926 O-Ring Boss hydraulic adapters for high-pressure systems.

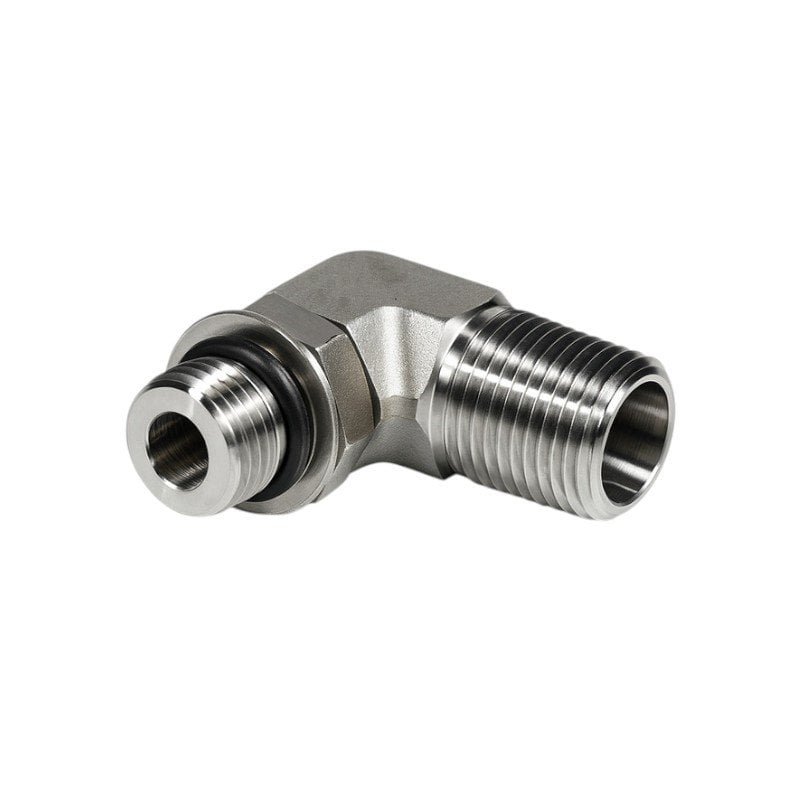

NPT Male to ORB Male 90° Elbow
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: ORB Male x NPT Male
- • Type: 90° Elbow

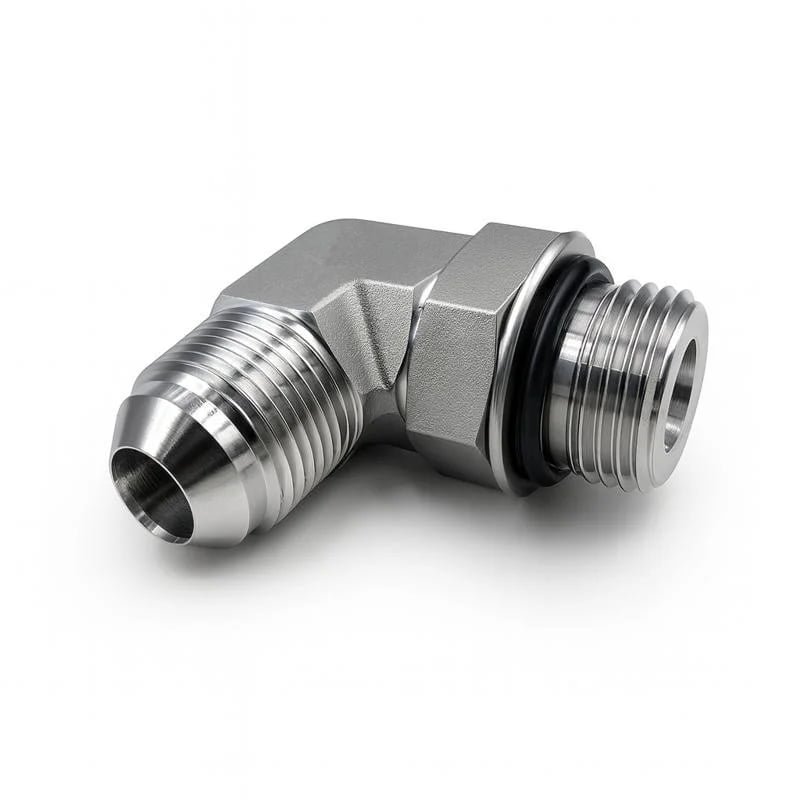

ORB 90° Elbow Adapter
- • Material: SS 304, SS 316Ti
- • Size: 1/4" - 2"
- • Angle: 90° Elbow
- • Connection: ORB x JIC

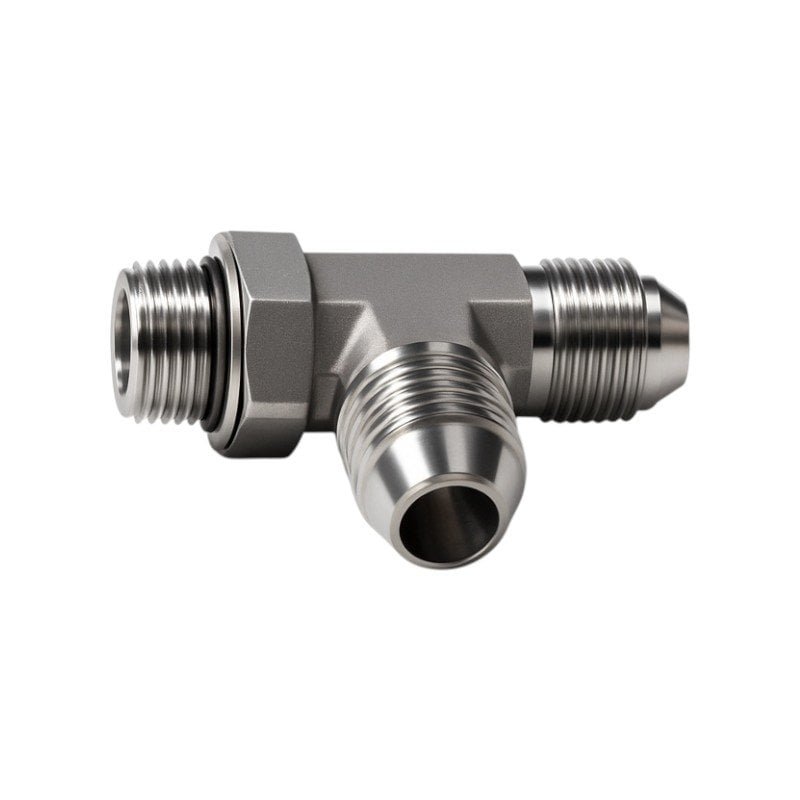

JIC Male to ORB Male Run Tee
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: ORB Male x JIC Male
- • Type: Run Tee

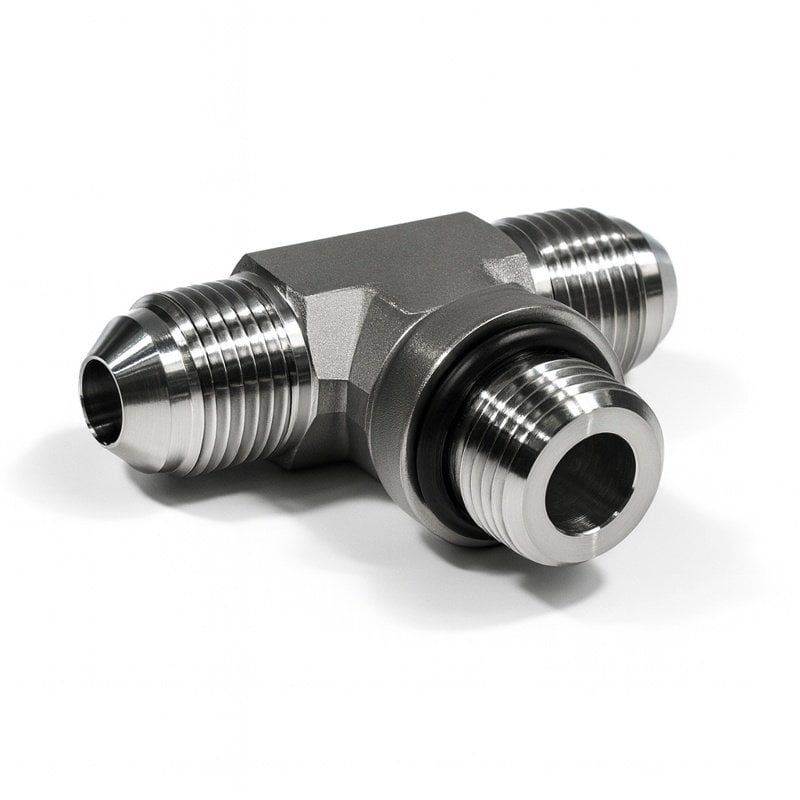

ORB Branch Tee Adapter
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Type: Branch Tee
- • Ports: 3-Way ORB Connection

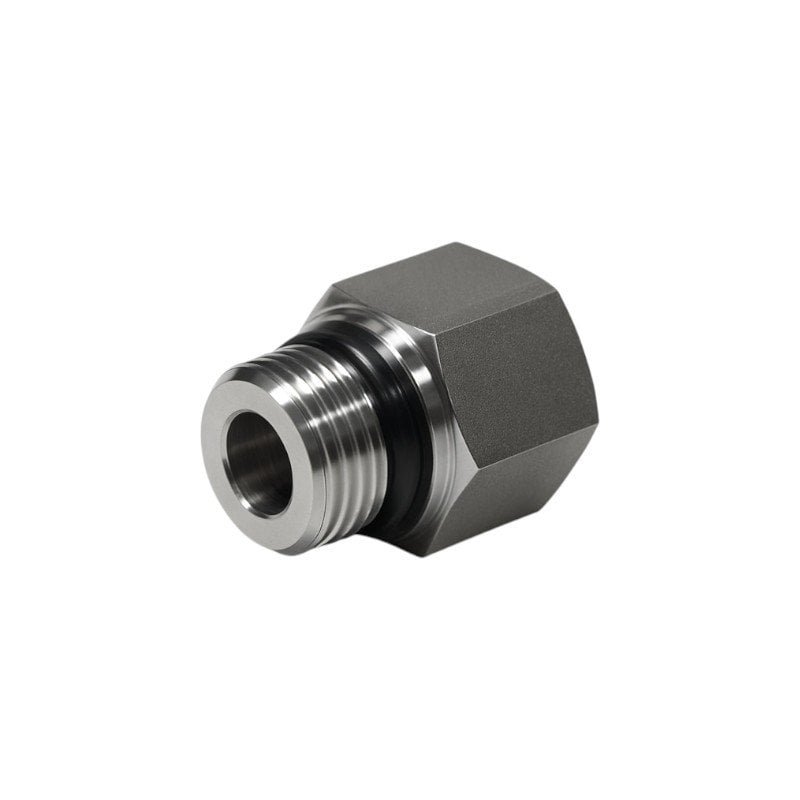

ORB Reducer Adapter
- • Material: SS 304, SS 316L
- • Size Range: 1/4" to 2"
- • Type: Reducing Adapter
- • Standard: SAE J1926

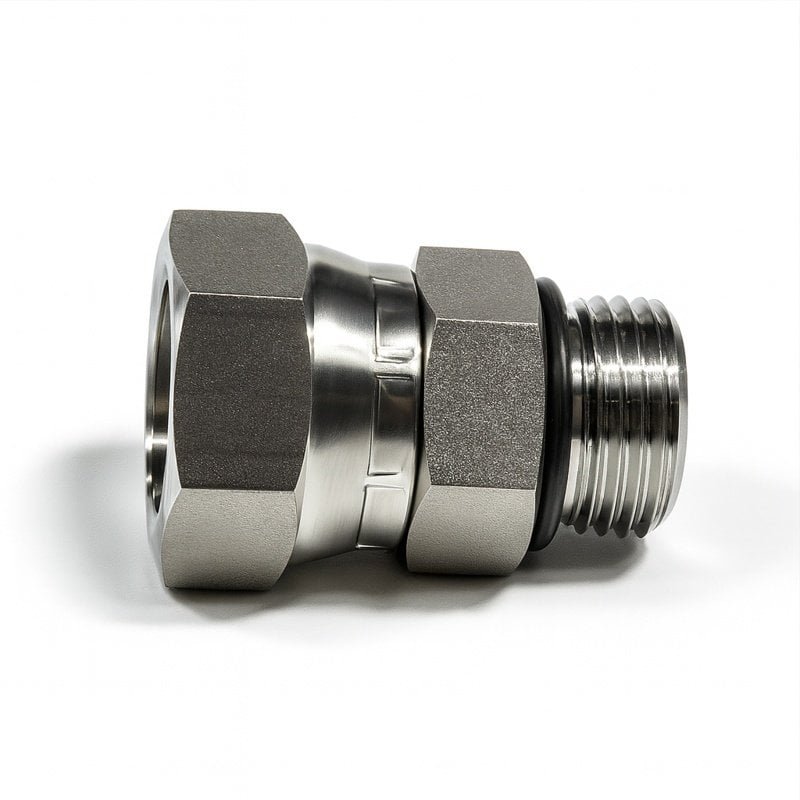

JIC Female Swivel ORB Adapter
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: JIC Female x ORB Male
- • Pressure: Up to 6000 PSI

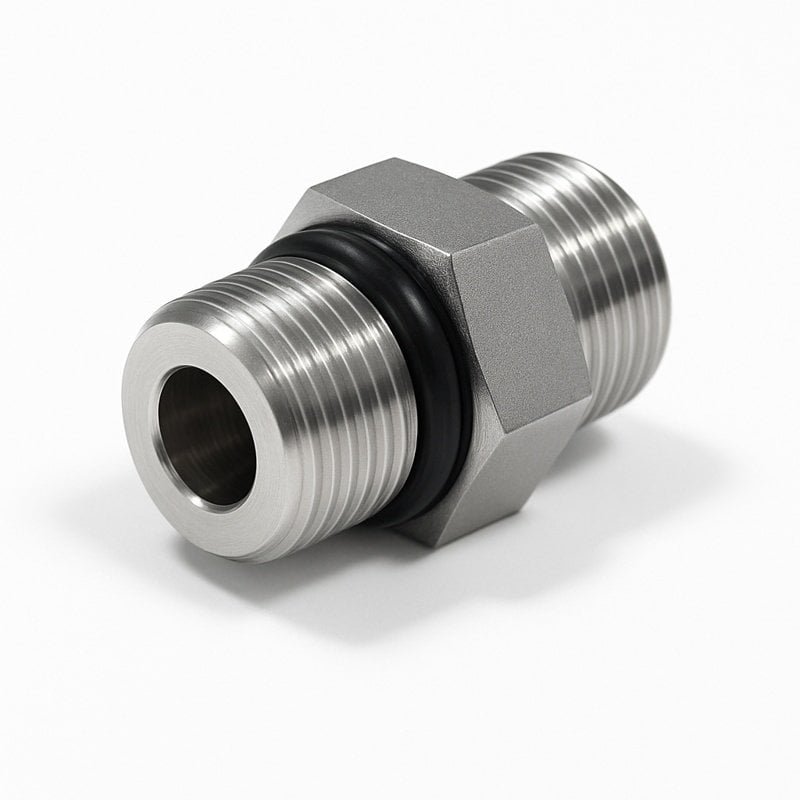

Male NPT to ORB Adapter
- • Material: SS 316L, SS 304
- • Size: 1/4" - 2"
- • Type: Straight Adapter
- • Seal: O-Ring Boss

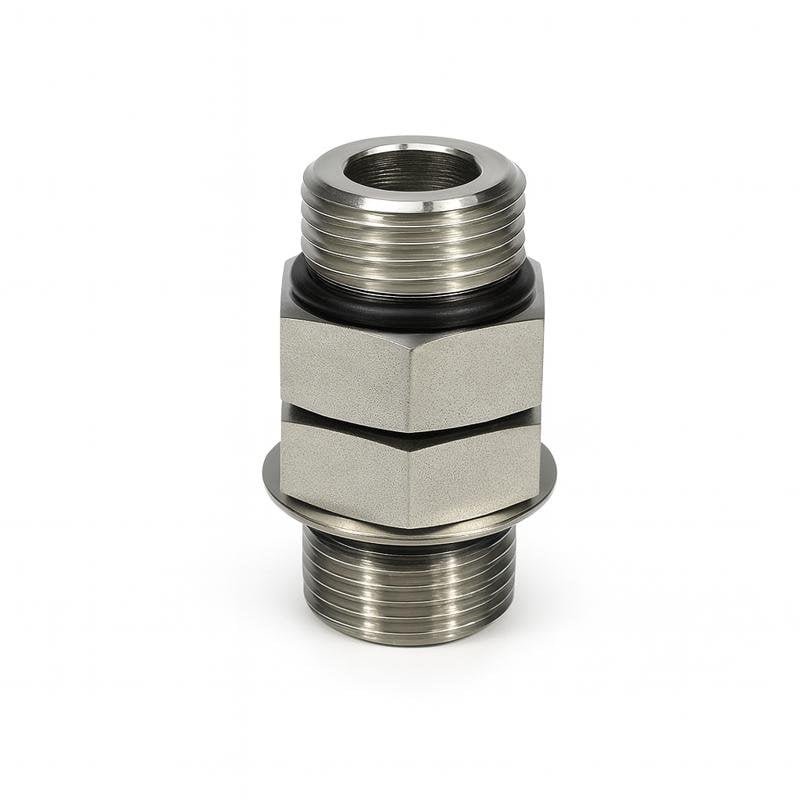

ORB Male Adjustable Adapter
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Type: Straight Adjustable
- • Ports: ORB Connections
Typical Technical Specifications
Industry-leading specifications for high-performance hydraulic applications
-
Thread Type: UNF Straight Thread (ORB)
-
Standard: SAE J1926 / ISO 11926
-
Sealing Method: O-Ring Face Compression
-
O-Ring Material: NBR (Standard), FKM Available
-
Size Range: 1/4" - 2"
-
Pressure Rating: Up to 6000 PSI (size dependent)
-
Material Options: SS 304 / SS 316 / SS 316L
-
Surface Finish: CNC Precision Machined
-
Application: High-Pressure Hydraulic Systems
Applications of Stainless Steel ORB Adapters
Stainless steel ORB (O-Ring Boss) adapters are widely used in high-pressure hydraulic systems where reliable, leak-free sealing is essential. The O-ring face seal design provides consistent performance in demanding environments requiring secure port connections and controlled installation torque.
Their corrosion resistance and dimensional precision make them suitable for critical hydraulic applications across multiple industries.
Typical Applications
- Hydraulic Power Units (HPU)
- Construction & Heavy Equipment
- Oil & Gas Hydraulic Systems
- Industrial Automation & Fluid Power
- Agricultural & Mining Machinery
- Marine & Offshore Equipment
- OEM Hydraulic Assemblies
Why Choose Our Stainless Steel ORB Adapters
Our stainless steel ORB hydraulic adapters are manufactured to meet SAE J1926 and ISO 11926 standards, ensuring precise thread engagement and consistent O-ring sealing performance. Each component undergoes strict dimensional inspection and quality control to guarantee reliable performance in high-pressure hydraulic systems.
With stable production capacity and extensive OEM experience, we support distributors, equipment manufacturers, and industrial clients worldwide with dependable supply and customized solutions.
Key Advantages
- Manufactured to SAE J1926 / ISO 11926 Standards
- Precision CNC Machined UNF Straight Threads
- Reliable O-Ring Face Sealing Performance
- 304 / 316 / 316L Stainless Steel Options
- Strict Dimensional & Quality Inspection
- High-Pressure Capability up to 6000 PSI
- OEM Customization & Private Label Support
- Bulk Supply for Distributors & Wholesalers
Frequently Asked Questions
Expert answers about stainless ORB adapters and O-ring boss fittings
What does ORB stand for?
ORB stands for O-Ring Boss, a straight-thread hydraulic connection that seals using an elastomeric O-ring compressed against a machined port face.
How do ORB hydraulic adapters seal?
ORB adapters use straight UNF threads for mechanical engagement, while sealing is achieved through controlled O-ring compression against the port surface rather than thread interference.
What standard are ORB adapters manufactured to?
Stainless steel ORB hydraulic adapters are manufactured in accordance with SAE J1926 and ISO 11926 standards.
Do ORB fittings require thread sealant?
No. ORB connections do not rely on thread sealing. The O-ring provides the primary seal, eliminating the need for PTFE tape or thread sealant.
What pressure rating can ORB adapters handle?
Pressure capability depends on size and configuration, but stainless steel ORB adapters are commonly suitable for high-pressure hydraulic systems up to 6000 PSI or more depending on application requirements.
Are stainless steel ORB adapters suitable for corrosive environments?
Yes. 304, 316, and 316L stainless steel options provide excellent corrosion resistance for marine, offshore, chemical, and harsh industrial environments.
Can ORB adapters be reused?
Yes. ORB connections are designed for repeatable assembly, provided the O-ring is in good condition and proper torque is applied during installation.
Related Hydraulic Adapters
Explore our complete range of premium stainless steel hydraulic fittings and adapters
JIC Hydraulic Adapters
Premium stainless steel JIC hydraulic adapters featuring 37-degree flare fittings for high-pressure hydraulic systems with precision-machined sealing surfaces.
NPT Hydraulic Adapters
NPT threaded hydraulic adapters with tapered pipe threads for secure connections in industrial hydraulic and pneumatic systems.

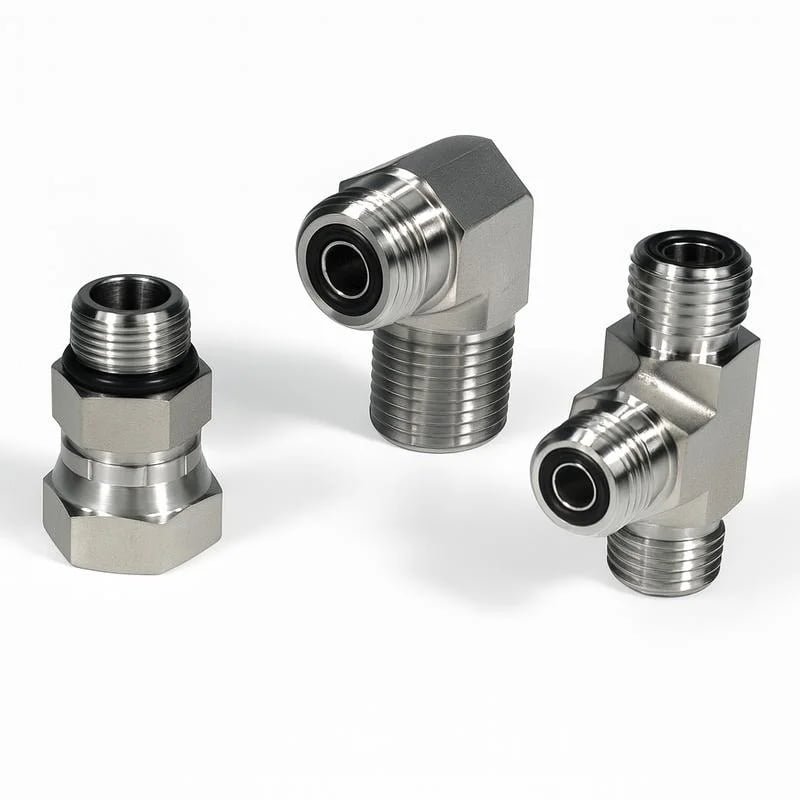

ORFS Hydraulic Adapters
O-Ring Face Seal adapters featuring flat-face sealing with O-ring groove for maximum leak resistance in high-pressure hydraulic systems.
