Stainless Steel NPSM Hydraulic Adapters
Straight Thread Mechanical Connections for Hydraulic Systems
What Are Stainless Steel NPSM Hydraulic Adapters?
Stainless steel NPSM hydraulic adapters feature straight pipe threads designed for mechanical connections in hydraulic and fluid transfer systems. Unlike tapered NPT threads, NPSM threads do not create sealing through thread interference and typically require an additional sealing element such as an O-ring or gasket.
Manufactured in accordance with ANSI B1.20.1 standards, NPSM adapters provide accurate thread engagement and reliable mechanical strength while allowing flexible sealing solutions depending on system requirements.
Technical Characteristics
- Thread Type: NPSM (National Pipe Straight Mechanical)
- Standard: ANSI B1.20.1
- Sealing Method: 60° internal cone seatO-ring / Gasket / Face Seal
- Size Range: 1/8" - 2"
- Material: 304 / 316 / 316L Stainless Steel
- Surface Finish: Precision Machined
Types of Stainless Steel NPSM Hydraulic Adapters

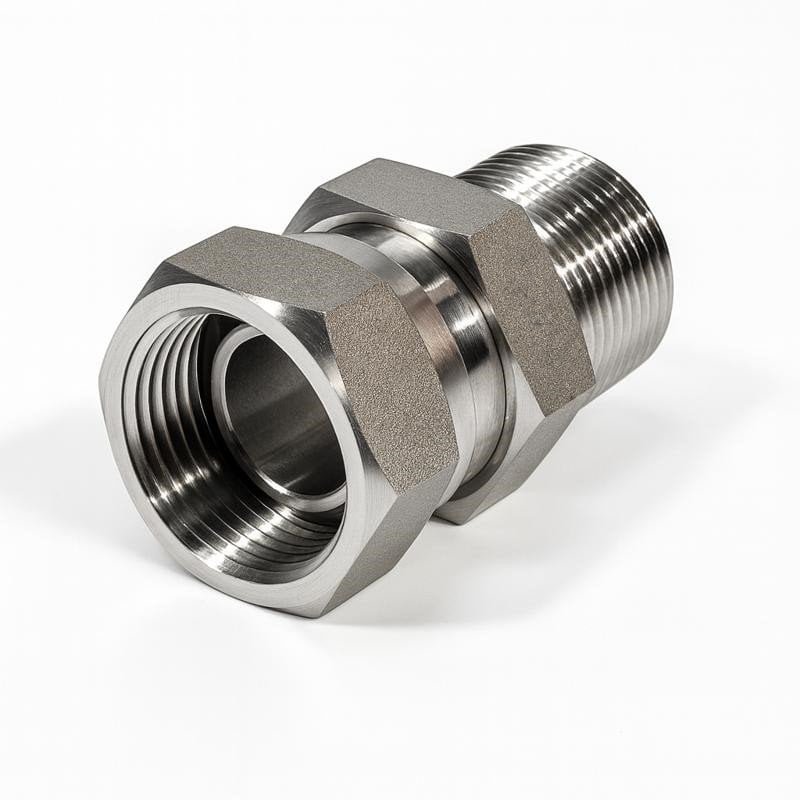

NPT Male to NPSM Female Swivel Adapter
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: NPT Male x NPSM Female
NPT Female to NPSM Female Swivel Adapter
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: Female NPSM x NPT

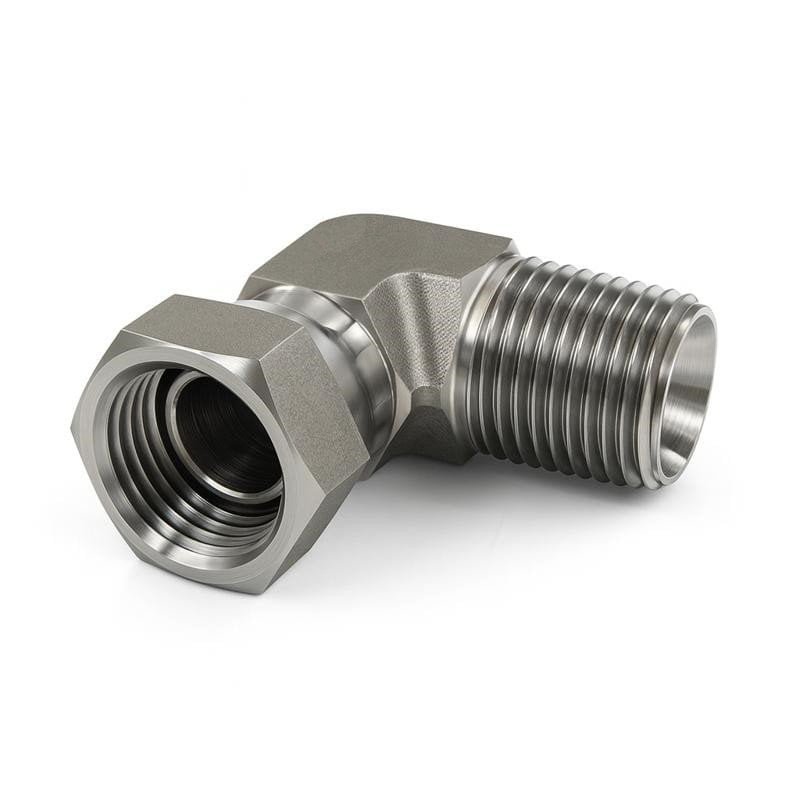

NPSM Female Swivel 90° Elbow
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: NPT Male x NPSM Female
- • Type: 90° Elbow

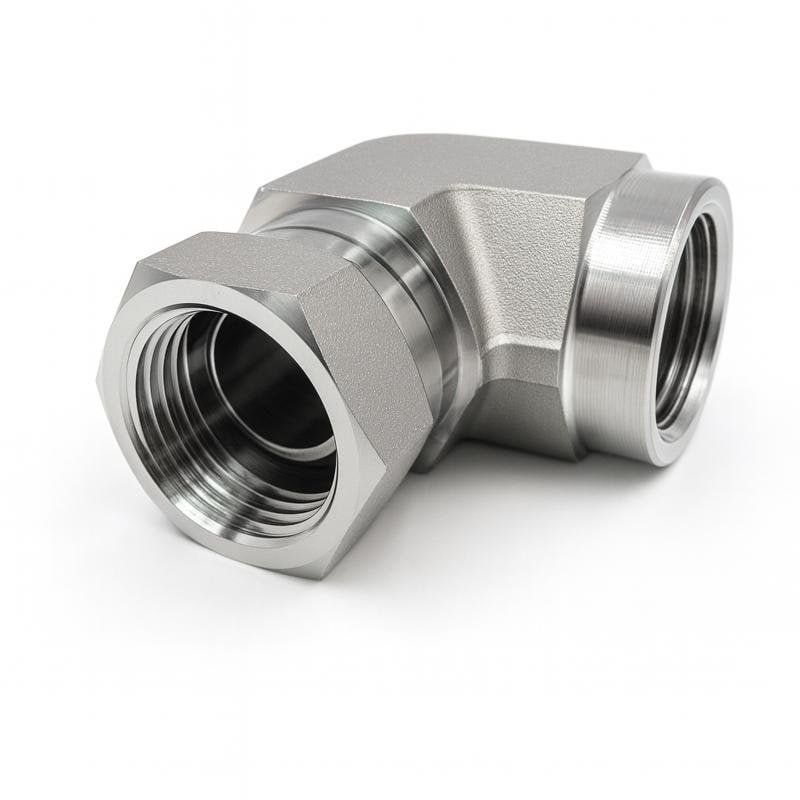

NPSM Female Swivel 90° Elbow
- • Material: SS 304, SS 316L
- • Size: 1/4" - 2"
- • Thread: NPSM Female x NPT
- • Type: 90° Elbow
Why Choose Our Stainless NPSM Adapters
Our premium stainless steel NPSM adapters are manufactured from high-grade 316L stainless steel, providing exceptional corrosion resistance and durability in demanding hydraulic applications. Each NPSM hydraulic connector undergoes precision CNC machining to ensure perfect thread geometry and consistent O-ring groove dimensions. Our comprehensive size range covers all standard NPSM specifications, offering seamless compatibility with NPT, ORB, and other hydraulic systems.
Premium 316L Material
Superior corrosion resistance
Precision Machining
Tight tolerance threading
Wide Size Range
Complete NPSM specifications
OEM Support
Custom solutions available
Technical Specifications
Frequently Asked Questions
What's the difference between NPSM and NPT threads?
NPSM (National Pipe Straight Mechanical) threads are straight parallel threads that seal using 60° cone sealing surfaces, while NPT (National Pipe Taper) threads are tapered and seal by thread interference. NPSM adapters provide more reliable sealing through their precision-machined cone interface, are reusable, and prevent thread galling in hydraulic applications.
Are NPSM hydraulic fittings reusable?
Yes, NPSM fittings are designed for multiple installations and removals. The straight thread design with O-ring sealing prevents thread damage during disassembly, making them ideal for maintenance-intensive hydraulic systems where connections need frequent servicing.
Where are NPSM adapters commonly used?
NPSM adapters are widely used in industrial hydraulic systems, mobile equipment, construction machinery, agricultural equipment, and manufacturing processes. They're particularly valuable in high-pressure applications requiring leak-proof connections and frequent maintenance access.
What makes stainless steel NPSM adapters superior?
Stainless steel NPSM adapters offer exceptional corrosion resistance, longer service life, and compatibility with various hydraulic fluids. The 316L grade provides superior performance in marine, chemical, and food-grade applications where standard steel fittings would fail.
