Stainless Steel Hydraulic Adapters
Supplier in China
Reliable OEM & Bulk Solutions for Distributors and Industrial Manufacturers Worldwide
- Complete range of stainless steel hydraulic adapters for high-pressure hydraulic systems
- Available in BSP, NPT, JIC, ORFS, and Metric thread standards
- Manufactured according to SAE, ISO, DIN, and JIS specifications
- 304 & 316 stainless steel for corrosion-resistant applications
- OEM customization, private labeling, and bulk supply available
What Are Stainless Steel Hydraulic Adapters?
Stainless steel hydraulic adapters are threaded connectors used to connect hydraulic components with different thread types or sealing methods. They are essential for integrating hoses, tubes, valves, and hydraulic equipment in high-pressure fluid systems.
Manufactured from 304 and 316 stainless steel, these adapters provide corrosion resistance, dimensional precision, and reliable sealing performance in demanding industrial environments.
Typical Technical Characteristics
-
Material: 304 / 316 / 316L Stainless Steel
-
Thread Standards: BSP, NPT, JIC, ORFS, ORB, Metric
-
Pressure Rating: Up to 6000 PSI (depending on size)
-
Temperature Range: -65°F to 400°F
-
Surface Finish: Precision CNC Machined
-
Compliance: SAE, ISO, DIN, JIS Standards
-
Compatibility: Parker, SSP and Major International Bands
Types of Stainless Steel Hydraulic Adapters
Our stainless steel hydraulic adapters are available in a complete range of international thread standards including JIC, NPT, BSP, ORFS, ORB, and Metric types. Designed for high-pressure hydraulic systems, all adapters are precision-machined to ensure reliable sealing and long-term performance.

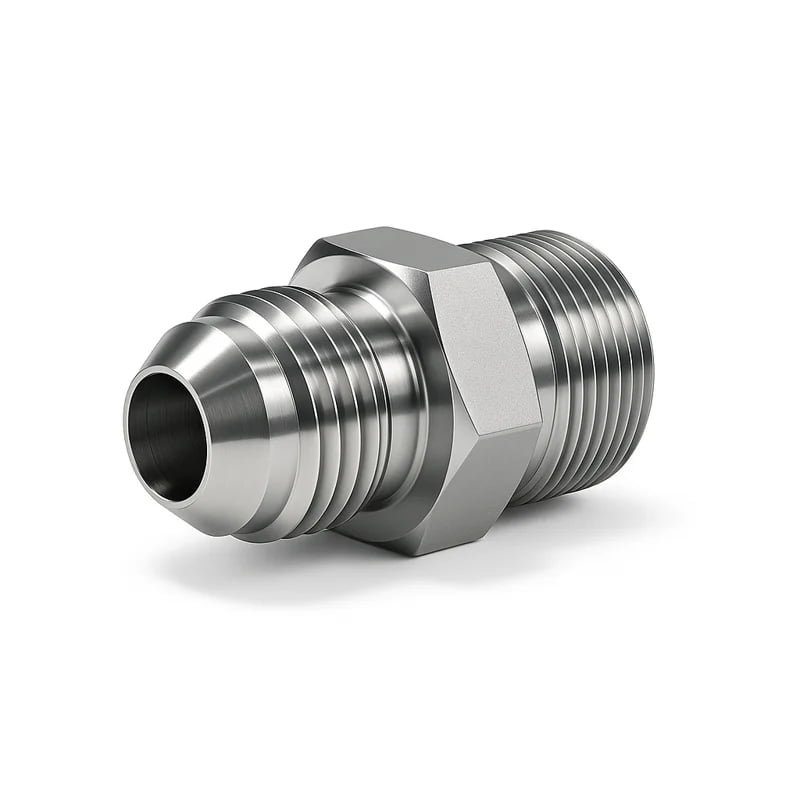

JIC Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: 37° Flare JIC
- • Size: 1/8" - 2"
- • Pressure: Up to 5,000 PSI
- • Standard: SAE J514

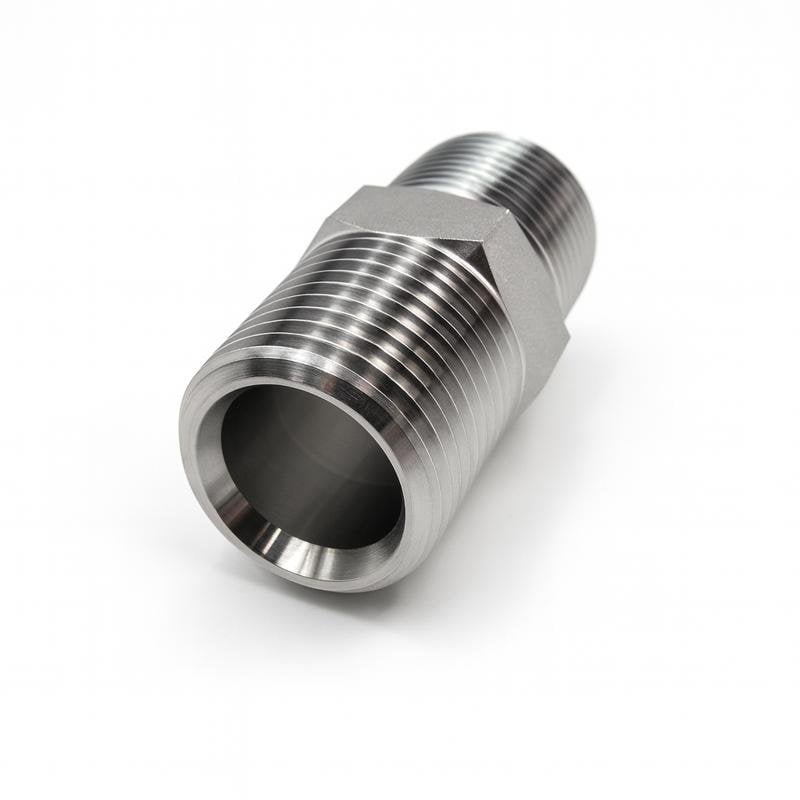

NPT Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: NPT Tapered Pipe Thread
- • Size: 1/8" - 2"
- • Pressure: Up to 6,000 PSI
- • Standard: ANSI B1.20.1/ANSI B1.20.3
ORB Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: UNF Straight Thread
- • Size: -1/4" - 2"
- • Sealing: O-Ring Boss
- • Standard: SAE J1926

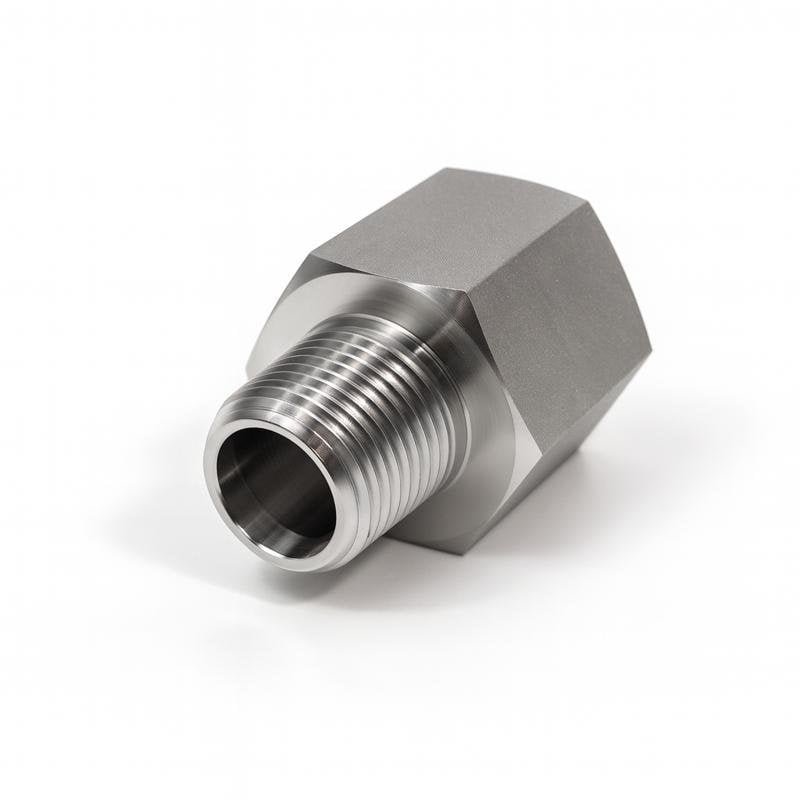

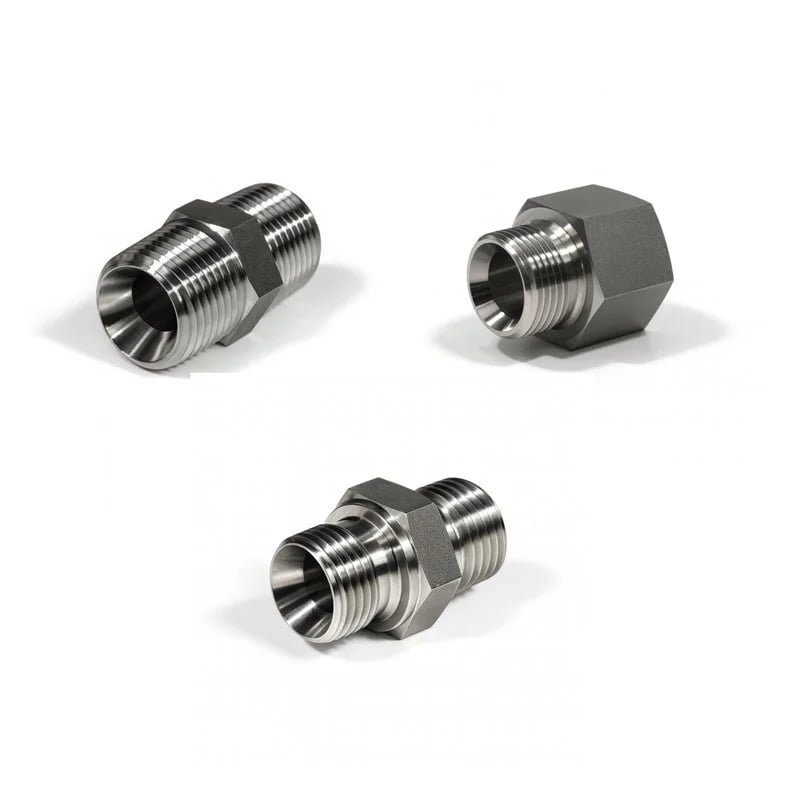

BSP Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: BSPP Parallel, BSPT Tapered
- • Size: 1/8" - 2"
- • Pressure: Up to 4,500 PSI
- • Standard: ISO 228, ISO 7/1
ORFS Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: O-Ring Face Seal (ORFS)
- • Size: 1/4" - 2"
- • Application: High-Pressure Hydraulic Systems
- • Standard: SAE J1453, ISO 8434-3

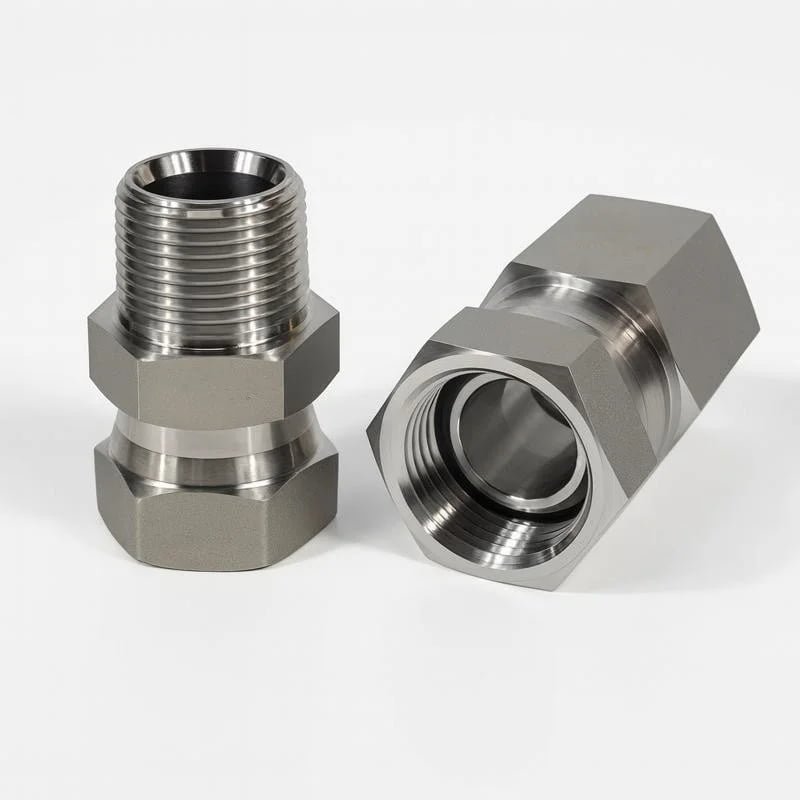

NPSM Hydraulic Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Thread: NPSM (National Pipe Straight Mechanical)
- • Size: 1/8" - 2"
- • Standard: ANSI B1.20.1, SAE J514

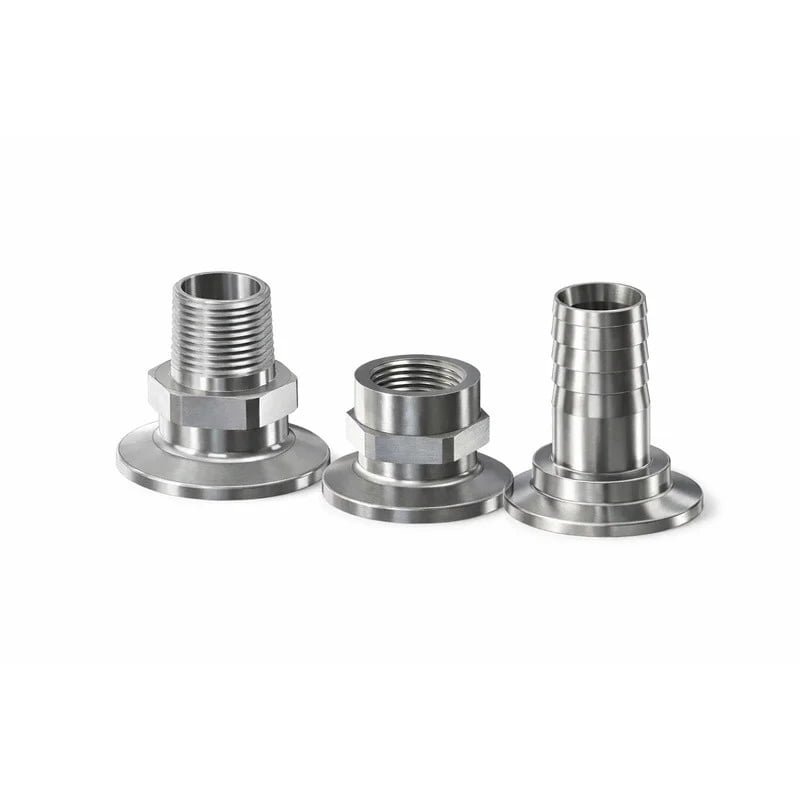

Tri-clamp Adapters
- • Material: SS 304, SS 316L, Custom Alloy
- • Type: Tri-clamp x Threaded
- • Size: 1/4" - 4"
- • Thread: BSPP, BSPT, NPT, JIC
- • Standard: ISO, SAE, DIN
Features of SS Hydraulic Adapters
Comprehensive range of stainless steel hydraulic adapters featuring various interface types, structures, and premium materials for diverse industrial applications
Thread Types
NPT
National Pipe Thread
Tapered thread standard
BSPP
British Standard Pipe Parallel
Straight thread with O-ring
BSPT
British Standard Pipe Taper
Tapered thread standard
JIC (37° Flare)
Joint Industry Council
37° flare connection
ORFS
O-Ring Face Seal
High-pressure applications

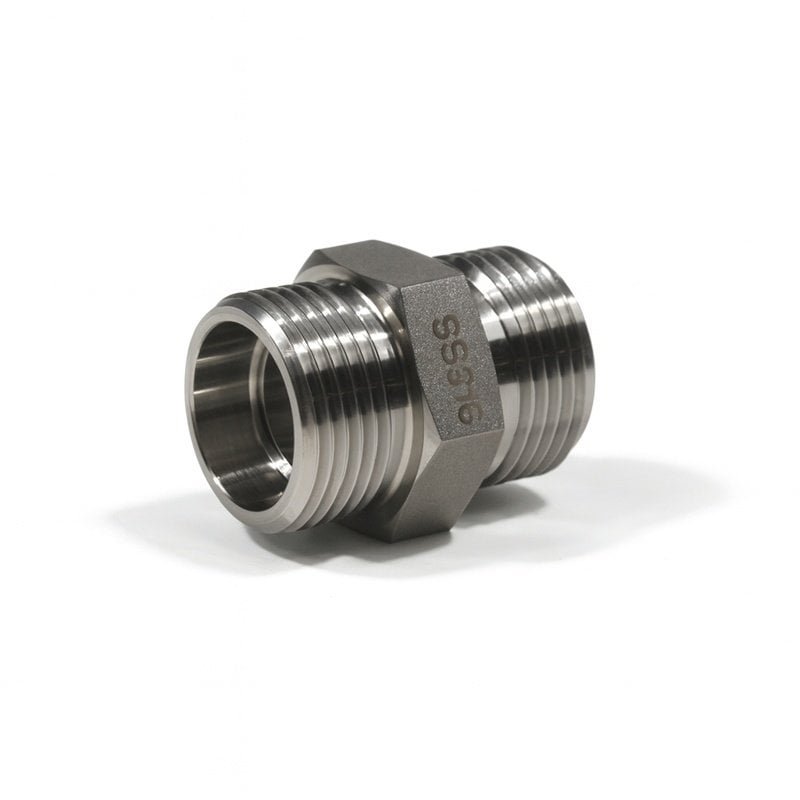

Metric
Metric Threading
ISO standard connections
ORB
O-Ring Boss fitting
SAE J1926-1 standard
NPSM
National Pipe Straight Mechanical
Straight thread design
Structure Types
Straight Adapters
Direct connection adapters for straight-line hydraulic connections with minimal pressure drop.
Elbow Adapters
90° and 45° angle adapters for directional changes in tight spaces and complex routing.
Tee Adapters
Three-way connection adapters for branching hydraulic lines and distribution systems.
Cross Adapters
Four-way connection adapters for complex hydraulic manifold and distribution applications.
Reducer Adapters
Size-changing adapters for connecting different diameter hydraulic components seamlessly.
Swivel Adapters
Rotating connection adapters for flexible movement and reduced stress on hydraulic lines.
Bulkhead Adapters
Panel-mount adapters for secure hydraulic connections through walls and barriers.
Plugs & Caps
Sealing components for port closure and system protection during maintenance and storage.
Premium Materials
316 / 316L Stainless Steel
Marine-grade stainless steel with enhanced corrosion resistance. Perfect for harsh environments and chemical applications.
Custom Materials
Specialized alloys including SS 316Ti, Hastelloy, Inconel, and other custom materials for extreme applications and specific requirements.
Our Stainless Hydraulic Adapters Standards
Comprehensive compliance with international standards ensuring global compatibility and superior performance
SAE Standards
Society of Automotive Engineers standards for mobile hydraulic equipment and heavy-duty applications.
ISO Standards
International Organization for Standardization specifications for global hydraulic systems compatibility.
DIN Standards
German Institute for Standardization specifications widely adopted in European hydraulic applications.
BS Standards
British Standard specifications for hydraulic tube fittings and connections in UK and Commonwealth markets.
JIS Standards
Japanese Industrial Standards for precision hydraulic fittings and high-quality manufacturing requirements.

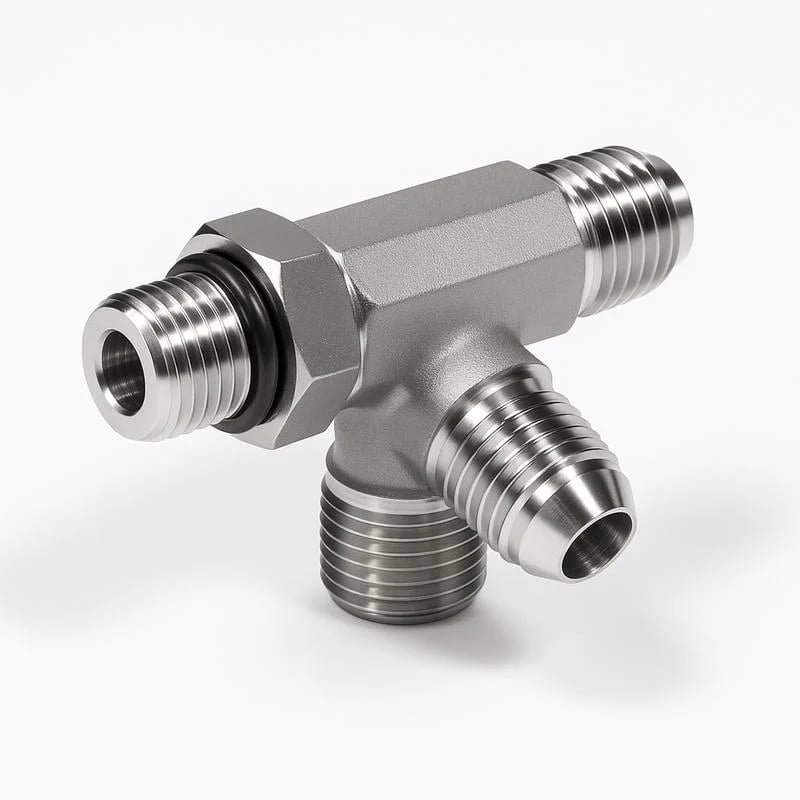

OEM & Custom Stainless Steel Hydraulic Adapters
Customizing hydraulic adapters to fit your unique needs is straightforward with TITAN Fluid. Here's our comprehensive customization guide to help you specify requirements and place orders.
Thread Type & Seal Configuration
BSP, NPT, SAE, JIC, ORFS threads with O-rings, flat seals, or metal-to-metal sealing mechanisms for leak-proof connections under pressure.
Precise Sizing & Material Selection
Custom diameters and lengths with SS 304, SS 316L, custom materials, or specialized alloys for specific environments including high pressure, temperature, and chemical exposure.
Surface Treatment & Branding
Passivation treatment available upon request for enhanced corrosion resistance. Professional logo customization and branding services available.
Applications of Stainless Steel Hydraulic Adapters
Stainless steel hydraulic adapters are widely used in high-pressure hydraulic systems where corrosion resistance, thread compatibility, and reliable sealing are critical.
Their precision-machined threads and durable stainless steel construction make them suitable for demanding industrial and fluid power applications.
Industry Applications
- Oil & Gas Hydraulic Systems
- Construction & Heavy Equipment
- Marine & Offshore Applications
- Chemical & Process Industries
- Agricultural & Mining Machinery
- Power Generation Systems
- Industrial Automation & Fluid Control
Why Choose Our Stainless Steel Hydraulic Adapters?
Precision-Engineered Quality
Our stainless steel hydraulic adapters are precision-machined to ensure accurate thread engagement, reliable sealing performance, and long-term durability in high-pressure hydraulic systems. We focus on dimensional consistency, material quality, and strict quality control to meet international industrial standards. Every component undergoes rigorous inspection and testing before delivery.
Dedicated support for long-term distributor and OEM partnerships worldwide.
Technical Advantages
- Precision CNC Machining with Tight Thread Tolerances
- 304 / 316 / 316L Stainless Steel Options
- Compliance with SAE, ISO, DIN & JIS Standards
- Pressure Tested for High-Performance Applications
- Corrosion Resistance for Marine & Harsh Environments
- OEM Custom Thread & Configuration Support
- Bulk Supply & Private Labeling Available
Frequently Asked Questions
Essential answers about stainless steel hydraulic adapters for wholesalers, distributors, and OEM partners
What is a hydraulic adapter?
A hydraulic adapter is a threaded connector used to join hydraulic components with different thread types or connection standards. Stainless steel hydraulic adapters allow secure, leak-free transitions between hoses, tubes, valves, and equipment in high-pressure hydraulic systems.
What is the difference between a hydraulic fitting and a hydraulic adapter?
Hydraulic fittings typically connect hoses or tubes directly, while hydraulic adapters are designed to connect components with different thread types or configurations. Adapters are commonly used to convert between BSP, NPT, JIC, ORFS, ORB, and metric threads.
Why choose stainless steel hydraulic adapters?
Stainless steel hydraulic adapters provide superior corrosion resistance, strength, and durability compared to carbon steel or brass. They are ideal for marine, chemical, oil & gas, and harsh industrial environments.
What thread types are available?
Our stainless steel hydraulic adapters are available in BSP, NPT, JIC 37°, ORFS, ORB, NPSM, and metric thread standards, manufactured according to SAE, ISO, DIN, and JIS specifications.
What pressure rating can stainless steel hydraulic adapters handle?
Pressure ratings depend on thread type and size, but most stainless steel hydraulic adapters are suitable for high-pressure applications, typically up to 6000 PSI or more depending on configuration.
Are stainless steel hydraulic adapters suitable for marine use?
Yes. 316 and 316L stainless steel adapters offer excellent corrosion resistance, making them suitable for marine and offshore hydraulic systems.
Do you provide OEM or custom hydraulic adapters?
Yes. We offer OEM customization, including special thread standards, custom dimensions, and private labeling for distributors and equipment manufacturers.
Why Partner With TITAN Fluid?
Cut out middlemen, save 15-30% on every order
24 hour fast response
Tailored specifications for your unique requirements
Expert engineers available for product selection
What Our Clients Say
"Excellent quality fittings and reliable delivery. TITAN Fluid has been our trusted supplier for over 5 years."
"Competitive pricing and consistent quality. Highly recommend for bulk orders."
Request Your Quote
Tell us about your requirements and we'll provide competitive pricing with technical specifications within 24 hours.
